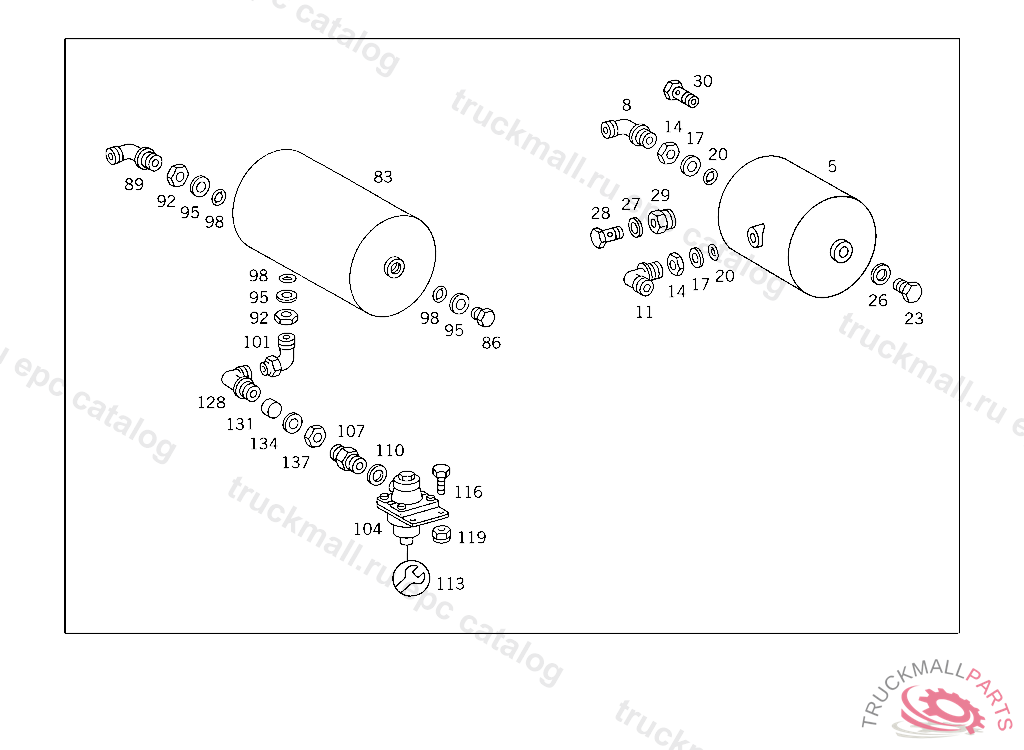

Поз.
Артикул
Описание
5
RESERVOIR , Replaced By: A0034320201
8
ELBOW FITTING
14
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
14
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
17
THRUST RING CHECK VALVE TO AIR RESERVOIR
17
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
20
O-RING CHECK VALVE TO AIR RESERVOIR
20
O-RING CHECK VALVE TO AIR RESERVOIR
23
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
26
SEAL RING LINE CONNECTION
27
SEAL RINGTO 006 997 00 72
28
HOLLOW SCREW DELIVERY LINE TO PUMP
29
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
30
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
83
RESERVOIR , Replaced By: A0034321201
86
SCREW AIR RESERVOIR
89
ELBOW FITTING
92
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
95
THRUST RING CHECK VALVE TO AIR RESERVOIR
95
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
98
O-RING CHECK VALVE TO AIR RESERVOIR
104
VALVE DRAIN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
107
SCREW-IN FITTING LINE CONNECTION
107
FITTING LINE CONNECTION, Replaced By: N000000006446
110
SEAL RING LINE CONNECTION
113
REPAIR KIT DRAIN VALVE
116
SCREW PLUG SOCKET TO FRAME
119
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
128
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
128
ELBOW FITTING AT BRAKE BOOSTER, B03543/06/08 FROM IDENT NO.: 549430
131
THRUST RING CHECK VALVE TO AIR RESERVOIR
131
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
134
O-RING CHECK VALVE TO AIR RESERVOIR
137
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
