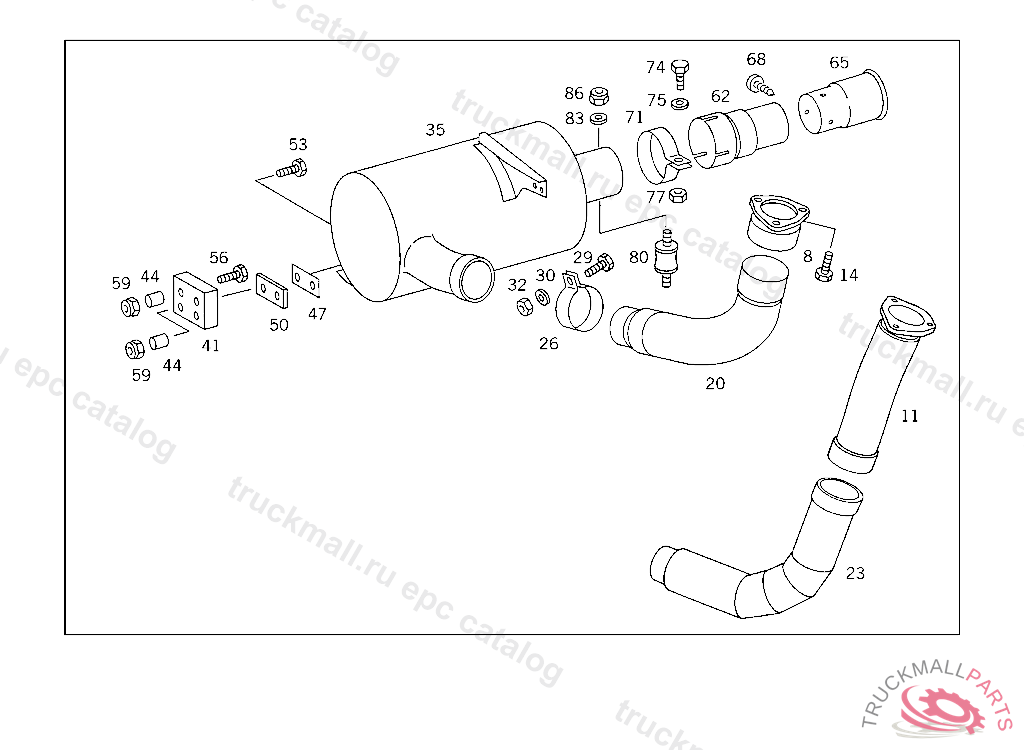

Поз.
Артикул
Описание
8
EXHAUST PIPE FRONT TOP
14
SCREW AIR RESERVOIR CONSOLE TO SIDE MEMBER
20
EXHAUST PIPE FRONT
26
CLAMP FRONT EXHAUST PIPE TO MUFFLER,B 884220
26
CLAMP INTERMEDIATE PIECE
29
SCREW BRACKET ON INJECTION PUMP BRACKET
30
WASHER TRANSMISSION TO INTERMEDIATE RING
32
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
35
EXHAUST MUFFLER ,C 079031
35
EXHAUST MUFFLER ,C 079030
35
EXHAUST MUFFLER , Replaced By: A3644908001
41
DAMPING PAD EXHAUST MUFFLER TO SUPPORT
44
SPACER TUBE BRACKET
44
SPACER TUBE BRACKET
47
BASE PLATE EXHAUST MUFFLER TO SUPPORT
47
BASE PLATE EXHAUST MUFFLER TO SUPPORT
50
INSULATION EXHAUST MUFFLER TO DAMPING PAD
50
INSULATION EXHAUST MUFFLER TO SUPPORT
53
SCREW CLUTCH TO FLYWHEEL M 8X50,838705
56
SCREW PROPELLER SHAFT TO COUPLING FLANGE
59
NUT , Replaced By: A0009906350
59
NUT , Replaced By: A0009906350
62
END PIECE EXHAUST 110 MM,C 077067
65
CHROMIUM JACKET
68
TAPPING SCREW CONNECTING PIPE,062326
71
CLAMP REAR EXHAUST PIPE TO MUFFLER
71
CLAMP EXHAUST PIPE TO BRACKET
74
SCREW COVER TO INTERMEDIATE FLANGE
75
WASHER TRANSMISSION TO INTERMEDIATE RING
77
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
80
RUBBER BUFFER EXHAUST MUFFLER
80
RUBBER MOUNTING FILTER TO BRACKET
83
WASHER GROUND CABLE
86
NUT SPRING CLAMP
