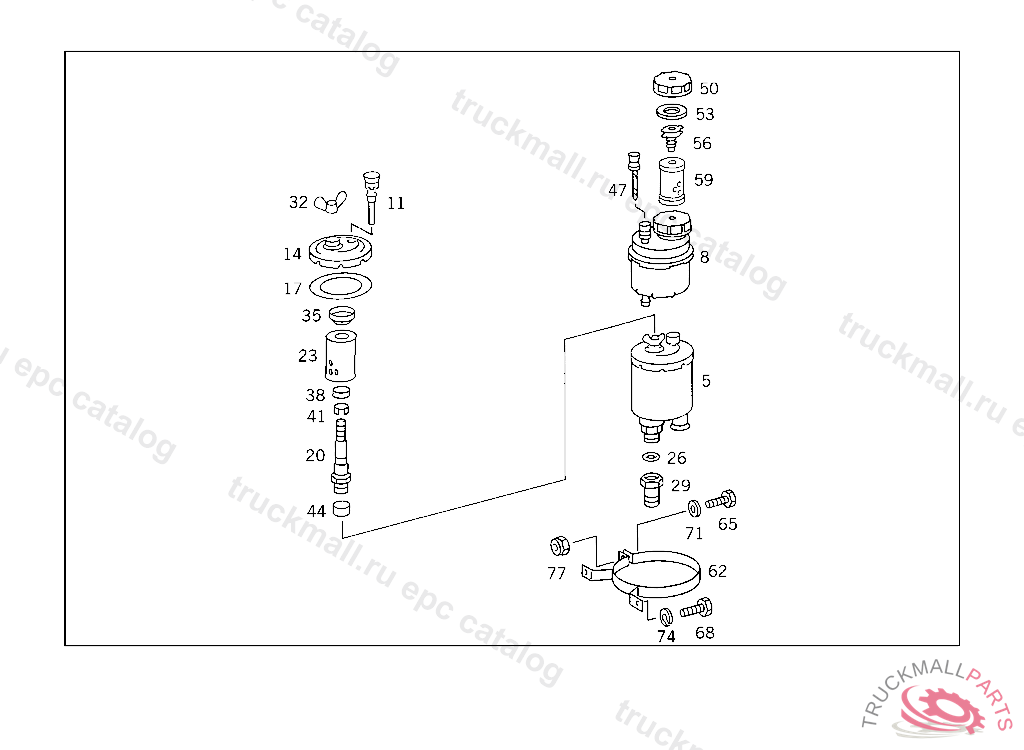

Поз.
Артикул
Описание
5
TANK ,C 063575
8
TANK OIL
11
PIPETO 000 466 38 02
14
COVER
17
SEAL RINGTO 000 466 38 02
20
FILTER SUPPORT
23
FILTER ELEMENT ,D 441028D 523393
23
FILTER , Replaced By: A0004660604
26
SEAL RINGTO 000 466 38 02
29
CONNECTORTO 364 466 71 02
32
NUT
32
NUT
35
CENTERING RINGTO 000 466 38 02
38
WASHER , Replaced By: A9402680552
41
SPACER TUBETO 000 466 38 02
44
COVER PLATETO 000 466 38 02
47
OIL DIPSTICK
47
OIL DIPSTICK , Replaced By: A0004661167
50
FILLER CAP
53
SEAL RING
56
BRACKET
59
FILTER
62
BRACKET OIL TANK
65
SCREW LINES TO BRACKET
68
SCREW PLUG SOCKET TO FRAME
71
WASHER TRAILER PLUG SOCKET TO BRACKET
74
LOCK WASHER RAIL TO BATTERY SUPPORT
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
