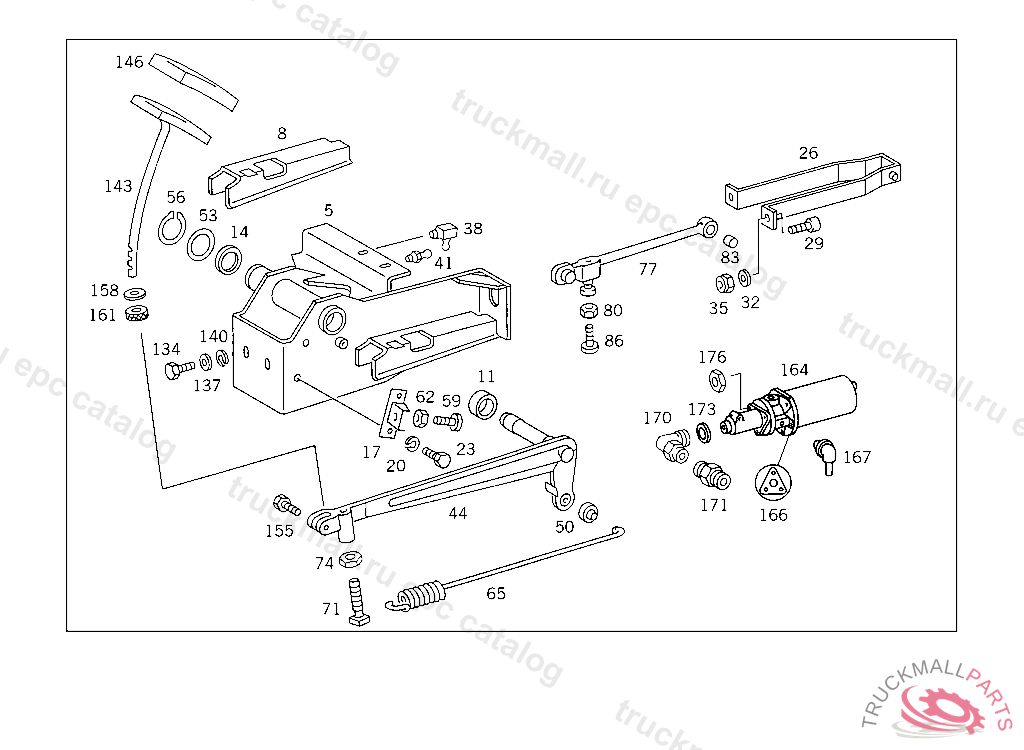

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
BRACKET
11
NEEDLE BEARING REAR DRIVE SHAFT
14
SEAL RING
17
BRACKET AT PEDAL ASSEMBLY BEARING BRACKET
20
LOCK WASHER RAIL TO BATTERY SUPPORT
23
SCREW PLUG SOCKET TO FRAME
26
BRACKET PEDAL ASSEMBLY
29
SCREW STEERING SHAFT BEARING TO CAB M 8X22
32
WASHER TRAILER PLUG SOCKET TO BRACKET
35
NUT BRACKET TO SIDE MEMBER
38
GREASE NIPPLE
41
GREASE NIPPLE INTERMEDIATE LEVER
50
JOINT BEARING , FROM IDENT NO. 000162 ALSO INSTALLED ON 000041,000047,000048,000105,000120
53
WASHER CLUTCH PEDAL TO BEARING BRACKET
56
LOCK RING
59
STOP CLUTCH PEDAL STOP
62
NUT TIGHTENER PULLEY TO SUPPORT
65
SPRING CLUTCH PEDAL RESET
71
SCREW SPRING TO CLUTCH PEDAL
74
NUT BRACKET TO SIDE MEMBER
77
CONNECTOR RELEASE SPRING
80
NUT
83
BUSHING , UP TO CHASSIS 000161 EXCEPT FOR 000041,000047,000048 000105,000120
83
BUSHING RELEASE SPRING
86
STOP CLUTCH PEDAL STOP
134
SCREW BRACKET TO SIDE MEMBER
137
WASHER GROUND CABLE
140
LOCK WASHER CONNECTOR
143
PEDAL PLATE CLUTCH
146
PAD BRAKE PEDAL
155
SCREW , Replaced By: N304017010040
158
WASHER CLUTCH PEDAL AND BRAKE PEDAL
161
RUBBER RING PEDAL THRU CAB FLOOR
