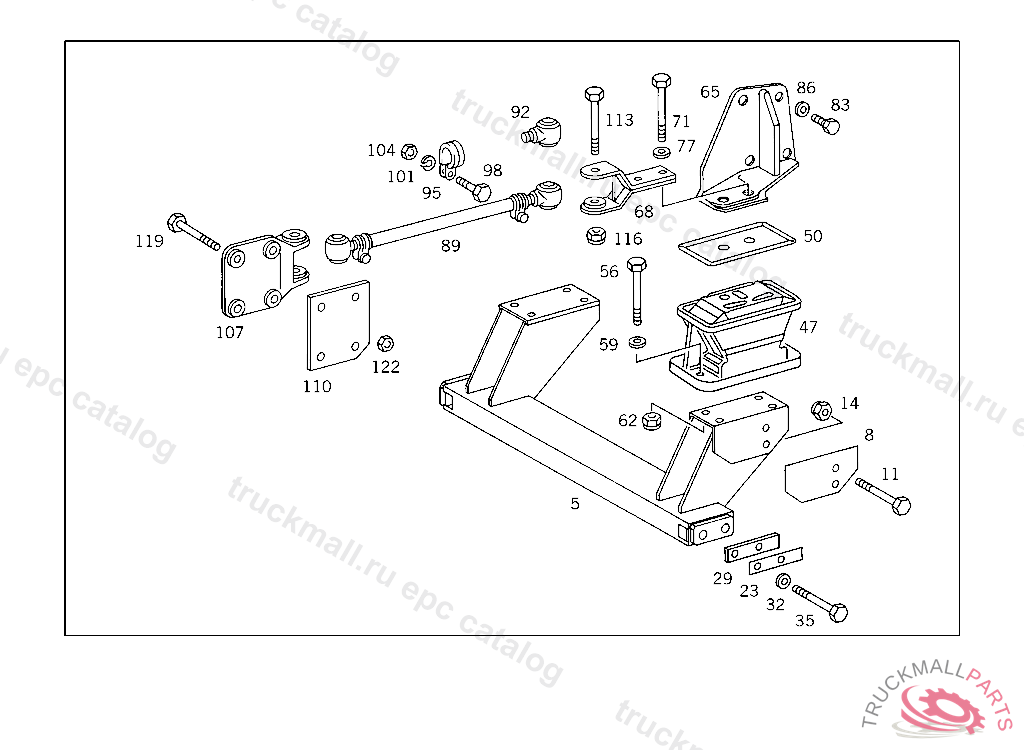

Поз.
Артикул
Описание
29
PLATE ENGINE SUPPORT TO SUBSTRUCTURE
32
WASHER
35
SCREW ENGINE TO ENGINE REAR MOUNTING M 14X1.5X90
47
RUBBER MOUNTING ENGINE REAR SUSPENSION
47
RUBBER MOUNTING , Replaced By: A3642400118
50
SCREENING PLATE REAR RUBBER MOUNTING
56
SCREW TORSION BAR TO BEARING BRACKET M14X1.5X80
56
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
56
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
59
WASHER , Replaced By: A3149900940
59
WASHER
62
NUT BRACKET TO BATTERY CASE
68
BRACKET ENGINE ALONGSIDE FIXING
77
WASHER IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 360 990 18 40
89
ROD ENGINE ALONGSIDE FIXING
92
ROD END RIGHT TO 364 240 76 25
92
ROD END LEFT TO 364 240 76 25
95
CLAMPTO 364 240 76 25
98
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
101
LOCK WASHER , Replaced By: N912004010102
104
HEX. NUT. NUT SHIFT LEVER KNOB
107
BRACKET ENGINE ALONGSIDE FIXING
113
STUD PULL ROD TO BEARING BRACKET
116
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
119
SCREW BATTERY CASE TO SIDE MEMBER
122
NUT BRACKET TO SIDE MEMBER
