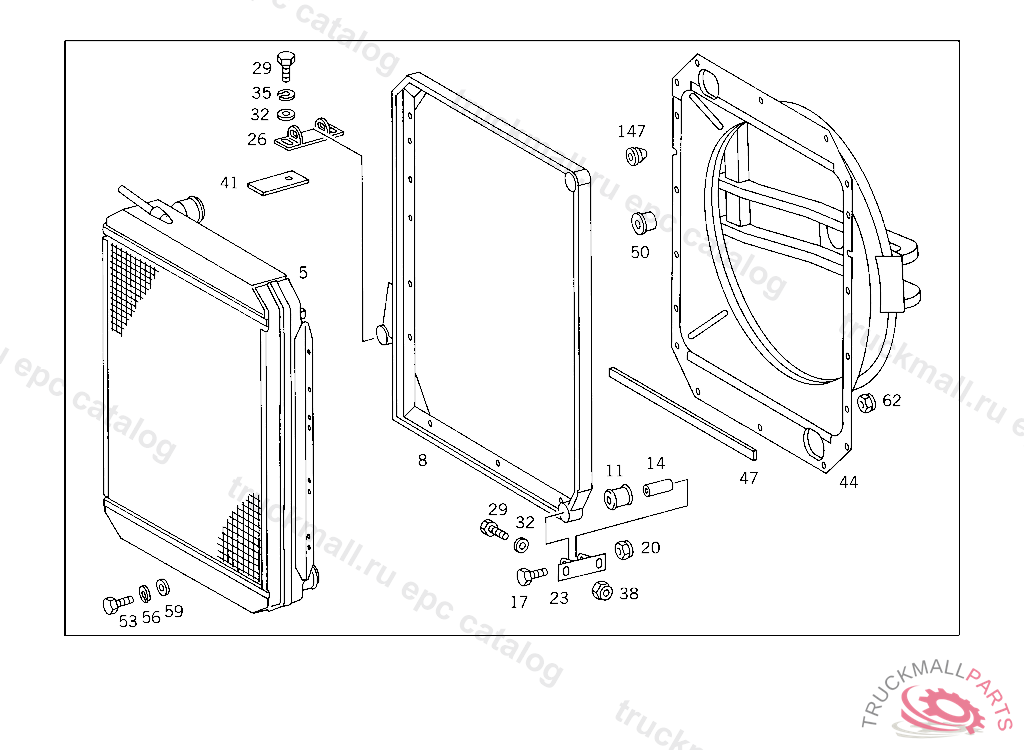

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR
5
RADIATOR , Replaced By: A3645018201
8
SUPPORT RADIATOR
11
MOUNTING
11
MOUNTING , Replaced By: A3028880224
11
BUFFER BEARING BRACKET TO BRACKET
14
SLEEVE
17
SCREW ALTERNATOR TO SUPPORT
20
NUT ALTERNATOR TO SUPPORT
23
STAY BEARING BRACKET FOR BASE FRAME,C 069088
23
STAY , UP TO CHASSIS 002229,FROM CHASSIS,SEE STANDARD VERSION
26
STAY BEARING BRACKET FOR BASE FRAME
29
SCREW , Replaced By: N304017010040
29
SCREW , Replaced By: N304017010040
32
WASHER GROUND CABLE
32
WASHER GROUND CABLE
35
LOCK WASHER FUSE
38
NUT BRACKET TO SIDE MEMBER,XB209706
41
BRACKET BEARING BRACKET TO SIDE MEMBER
44
SUPPORT FAN
47
GASKET FAN,000475002229
50
BUSHING ,C 077373
53
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
56
LOCK WASHER RAIL TO BATTERY SUPPORT
59
WASHER TRAILER PLUG SOCKET TO BRACKET
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
147
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
