Поз.
Артикул
Описание

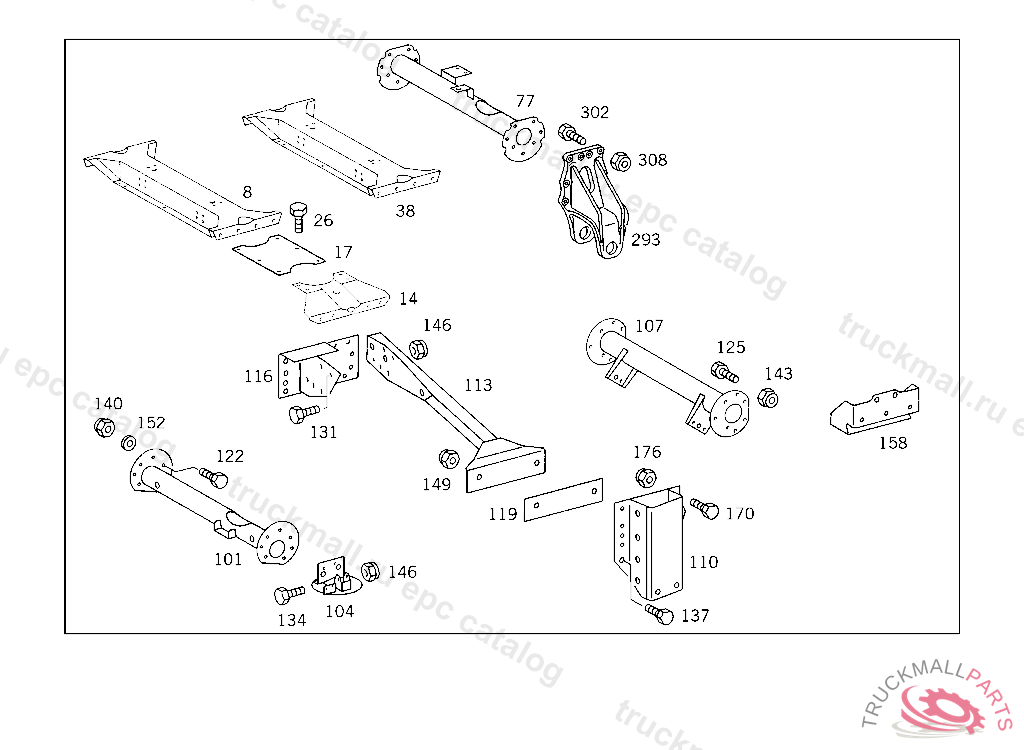

38
CROSS MEMBERNO. 5+6
77
CROSS MEMBERNO.7, 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
101
CROSS MEMBERNO.10
101
CROSS MEMBER , Replaced By: A3903107938
104
MOUNTING PLATE AIR SPRING BELLOWS,RIGHT
104
MOUNTING PLATE AIR SPRING BELLOWS,LEFT
107
CROSS MEMBERNO. 11
110
BRACKET AT CROSS MEMBER NO.11
113
STRUT AT CROSS MEMBER NO.11
116
STIFFENING AT CROSS MEMBER NO.11
119
SHIM
122
SCREW BRACKET TO SIDE MEMBER
125
SCREW CONSOLE TO SIDE MEMBER M 14X1.5X40
125
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
125
SCREW BRACKET TO FRAME SIDE MEMBER M 14X1.5X60
131
SCREW CONSOLE TO FRAME SIDE MEMBER M16X38
134
SCREW CROSS MEMBER TO SIDE MEMBERS TO NO.10, M 16X140
137
SCREW BELL HOUSING TO TRANSMISSION
140
NUT BRACKET TO LEFT SIDE MEMBER
143
NUT , Replaced By: N910113014000
146
NUT , Replaced By: N910113016001
149
NUT TORSION BAR TO BEARING BRACKET,5 904661
152
WASHER
158
CONSOLE , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
170
SCREW CONSOLE TO SIDE MEMBER
176
NUT SUPPORT TO SIDE MEMBER
293
REAR SPRING BRACKET
302
SCREW BATTERY CASE TO SIDE MEMBER
302
SCREW REAR SPRING BRACKET TO SIDE MEMBER M 14X55
302
SCREW REAR SPRING BRACKET TO SIDE MEMBER
308
NUT , Replaced By: N910113014000
