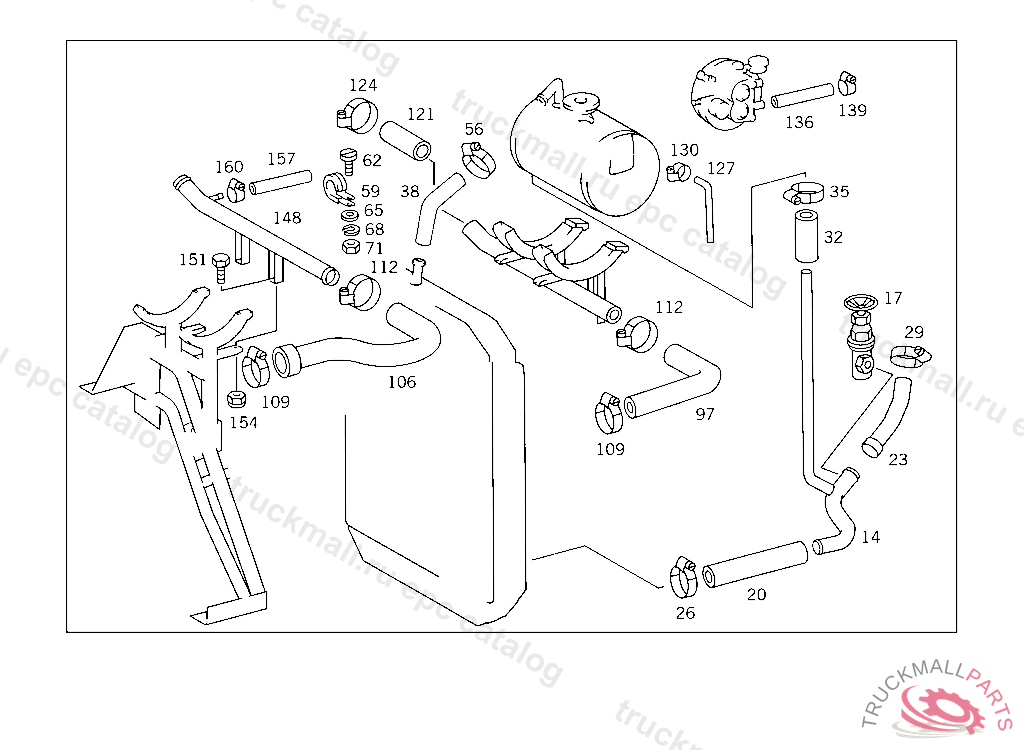

Поз.
Артикул
Описание
14
SEPARATOR (BUBBLE SEPARATOR)
17
VALVE
20
HOSE FROM RADIATOR TO EXPANSION TANK
23
HOSE , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
26
CLAMP , Replaced By: N000000000672
26
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 50-70
26
CLAMP HOSE FASTENING 50-70X13 MM
29
CLAMP
29
CLAMP , Replaced By: N000000000671
32
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR 38X50X110
35
CLAMP
35
CLAMP , Replaced By: N000000000671
35
CLAMP HOSE ATTACHMENT
38
HOSE DE-AERATION LINE 12X21X390
56
CLAMP HOSE TO FITTING AND TO OIL TANK
56
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
59
CLAMP PIPE ON FAN SHROUD
62
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
65
WASHER PLUG SOCKET TO BRACKET
68
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
71
NUT CLAMP TO BRACKET
97
HOSE FROM THERMOSTAT TO RADIATOR
106
HOSE RADIATOR TO SUPPORT, 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
109
CLAMP HOSE FASTENING 50-70X13 MM
109
CLAMP
109
CLAMP. LOOM TIE (DRY FILTER)
109
CLAMP , Replaced By: N000000000672
109
CLAMP , Replaced By: N000000000671
109
CLAMP MOLDED HOSE TO FITTING
112
CLAMP , Replaced By: N000000000671
112
CLAMP
121
HOSE FROM THERMOSTAT TO PIPE LINE
124
CLAMP
124
CLAMP , Replaced By: N000000000671
127
HOSE DE-AERATION LINE TO EXPANSION TANK
127
HOSE DE-AERATION LINE TO EXPANSION TANK
130
CLAMP HOSE TO FITTING AND TO OIL TANK
130
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
148
LINE , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
151
SCREW BRACKET TO BUMPER,LEFT M 10X25
154
NUT , Replaced By: N910113010000
157
HOSE COOLING WATER LINE
160
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
160
CLAMP HOSE TO FITTING AND TO OIL TANK
999
CLAMP , Replaced By: N000000000671
999
LOOM TIE ELECTRIC CABLE MOUNTING
999
LOOM TIE , Replaced By: A3459977390
