Поз.
Артикул
Описание

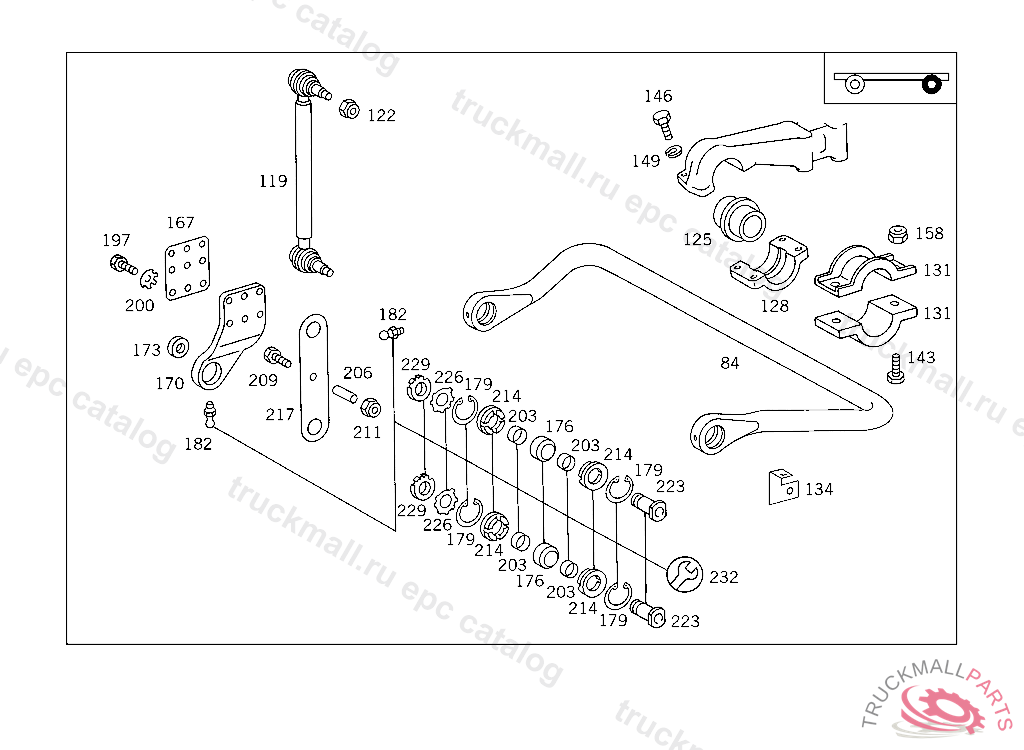

84
TORSION BAR ,D 005410
84
TORSION BAR
125
RUBBER MOUNTING AT SHOCK ABSORBER BRACKET,D 005410
128
BRACKET AT SHOCK ABSORBER BRACKET
131
BRACKET STABILIZER TO FRONT AXLE
134
BRACKET LINE TO FRONT AXLE,LEFT
134
BRACKET LINE TO FRONT AXLE,RIGHT
143
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
146
SCREW BATTERY CASE TO SIDE MEMBER
149
LOCK WASHER SUPPORT TO SIDE MEMBER
158
NUT , Replaced By: N910113012003
167
PLATE. WEB STABILIZER
170
BEARING BRACKET RIGHT SIDE MEMBER,D 005410
170
BEARING BRACKET LEFT SIDE MEMBER,D 005410
173
BUSHING
176
JOINT BEARING TORSION BAR TO LINK,5 903513
176
JOINT BEARING TORSION BAR TO LINK,5 903513
179
LOCK RING TORSION BAR TO LINK,5 903513
182
GREASE NIPPLE INTERMEDIATE LEVER
182
GREASE NIPPLE
182
GREASE NIPPLE
197
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
200
SERRATED WASHER BEARING BRACKET AND PLATE TO FRAME
203
SPACER TUBE LINK TO BEARING BRACKET,5 903513
206
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
209
SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M 12X1.5X75
211
NUT SUPPORT TO SIDE MEMBER
214
SEAL RING LINK TO BEARING BRACKET,5 903513
214
SEAL RING TORSION BAR TO BEARING BRACKET,D 005410
217
LINK TORSION BAR TO BEARING BRACKET,D 005410
223
PIN TORSION BAR TO BEARING BRACKET,D 005410
226
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
229
NUT TORSION BAR TO BEARING BRACKET,5 904660
232
REPAIR KIT REAR STABILIZER,D 005410
999
JOINT STABILIZER
999
NUT
