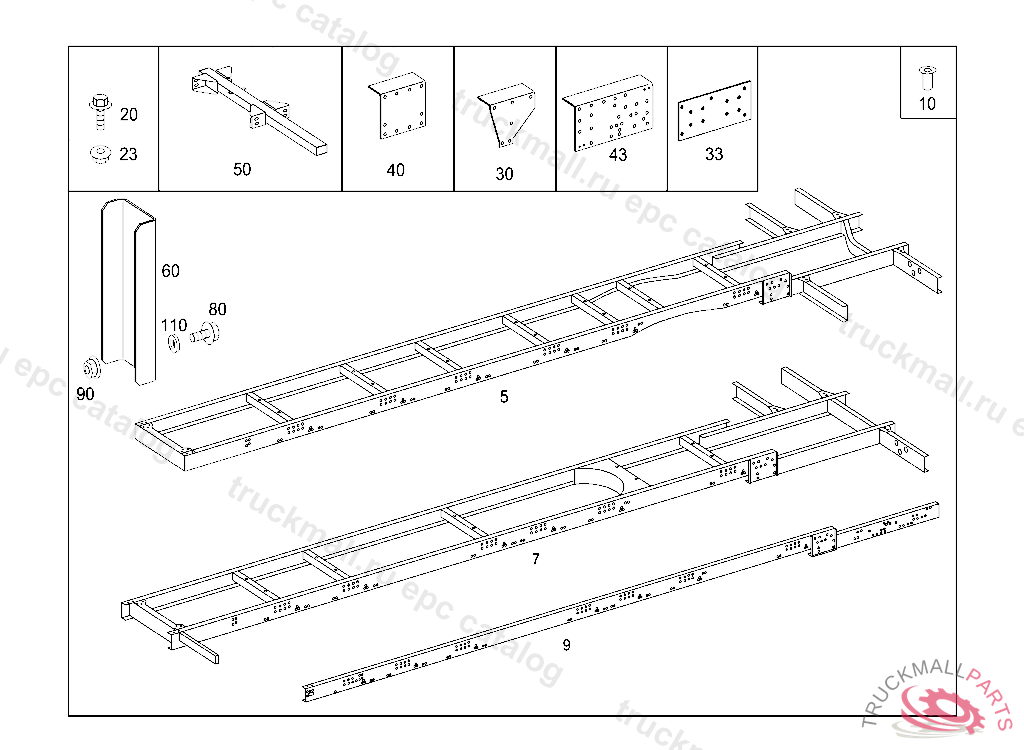

Поз.
Артикул
Описание
5
FRAME LENGTH: 9975 MM (TO OM 904/924 LA)
5
FRAME DOUBLE DOOR: CHASSI 10261 MM (TO OM 904/924 LA)
20
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
20
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO BRACKET M10 X 120
20
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
20
SCREW BRACKET TO SIDE MEMBER M10X35
20
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
20
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
20
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
23
NUT BRACKET TO SIDE MEMBER M12X1.5
23
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
23
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
23
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
23
NUT SUPPORT TO FRAME
23
NUT STEERING SUPPORT TO FRAME
30
REINFORCEMENT MOUNTING PLATE TO SUBSTRUCTURE DIREITA
30
REINFORCEMENT MOUNTING PLATE TO SUBSTRUCTURE ESQUERDA
33
FRAME REINFORCEMENT LEFT AND RIGHT
40
REINFORCEMENT ONLY APPLICABLE TO MODELS:112/115
43
CONNECTION FRAME TRUSSING,LEFT
43
CONNECTION CYLINDER TO FRONT AXLE BEARING BRACKETDIREITO
50
CROSS MEMBER NO. 1, TO BE ADAPTED DURING ASSEMBLY
60
ANGLE DRIVER'S SEAT PEDESTAL TO CROSS MEMBER, FRONT
80
SCREW , Replaced By: N910143008002
80
SCREW BRACKET TO CAB REAR PANEL M 8X20
90
NUT HORN TO BRACKET M8
110
WASHER BRACKET TO CAB REAR PANEL
