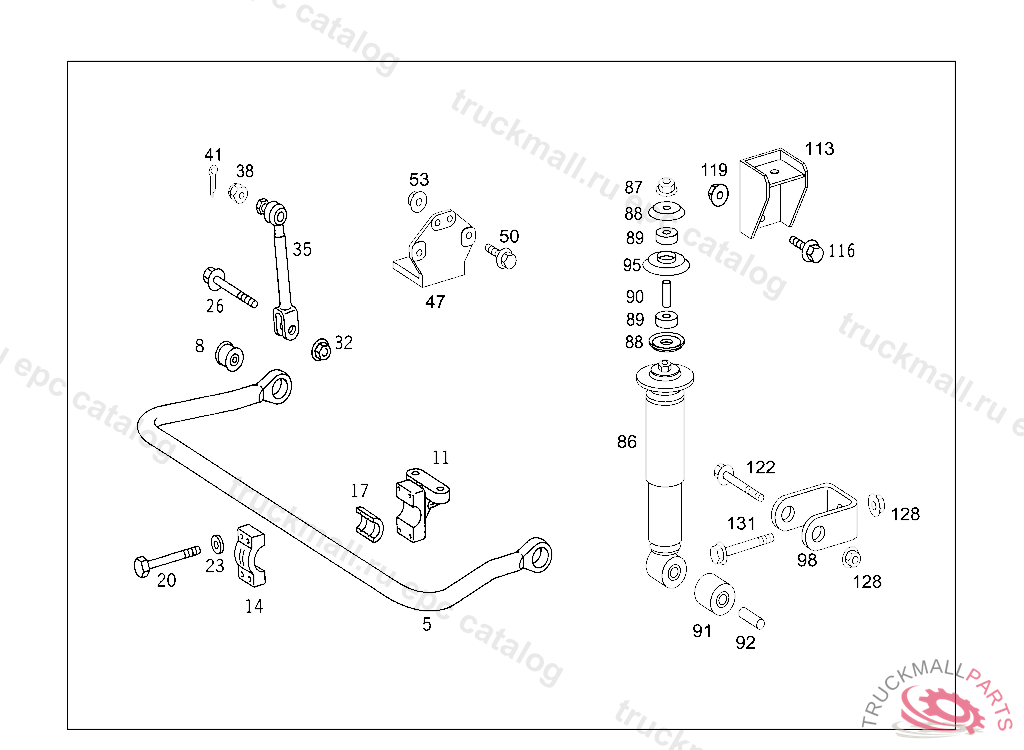

Поз.
Артикул
Описание
5
TORSION BAR STABILIZER
8
BUSHING
11
BEARING BRACKET HOLE SPACING: 88 MM
14
BEARING SHELL TORSION BAR BEARING
17
GROMMET STABILIZER
20
SCREW (ARTICULATED ROD)
23
WASHER STRUT TO CONSOLE
26
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
32
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
35
ROD (ARTICULATED ROD)
35
ROD (ARTICULATED ROD)TRW (330 MM)
35
ROD (ARTICULATED ROD) NAKATA
38
NUT M14X1,5 MM
41
COTTER PIN (ARTICULATED ROD)
47
BEARING BRACKET
50
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
50
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
53
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
86
SHOCK ABSORBER FRONT
86
SHOCK ABSORBER FRONT
86
SHOCK ABSORBER FRONT
87
NUT TOP AND BOTTOM TO A 634 326 00 00
87
NUT
88
THRUST WASHER TOP AND BOTTOM TO 634 326 00 00
88
SPRING RETAINER
89
RUBBER BUFFER
89
RUBBER MOUNTING , Replaced By: A6643230044
89
RUBBER BUFFER TOP AND BOTTOM TO A 634 326 00 00
90
BUSHING TOP AND BOTTOM TO A 634 326 00 00
90
SPACER TUBE
91
RUBBER BUFFER TOP AND BOTTOM
92
BUSHING TOP AND BOTTOM
95
SPRING RETAINER
98
BRACKET SHOCK ABSORBER MOUNTING
113
BRACKET SHOCK ABSORBER BRACKET
113
BRACKET SHOCK ABSORBER BRACKET
113
BRACKET SHOCK ABSORBER BRACKET
113
BRACKET SHOCK ABSORBER BRACKET
116
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
119
NUT SUPPORT TO FRAME
122
SCREW STEERING SUPPORT TO FRAME M 20X1.5X130
128
NUT TRAILER COUPLING TO REAR CROSS MEMBER
131
HEXAGON HEAD BOLT SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT M20X1.5X110
