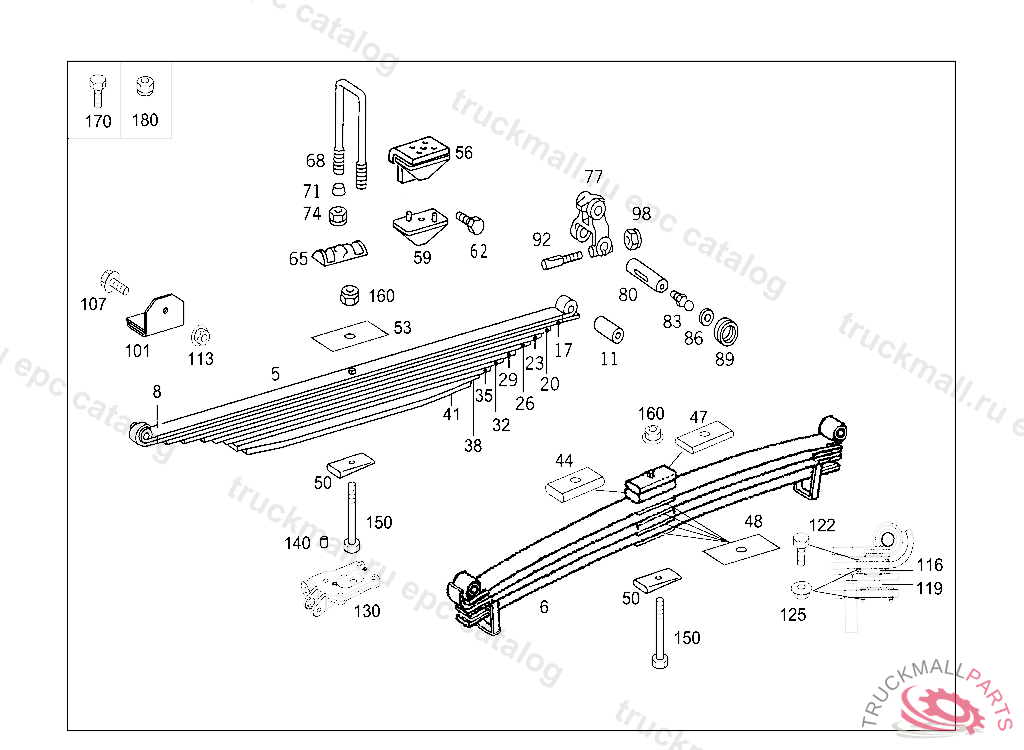

Поз.
Артикул
Описание
5
REAR SPRING 10-LEAF
6
PARABOLIC SPRING 4-LEAF
8
TS MAIN LEAF OF SPRING NO.1 TO A 3683200102
8
TS MAIN LEAF OF SPRING PARTS KIT1 TO A 3683200305
11
BUSHING
11
BUSHING
17
SPRING LEAF 2
17
TS SINGLE SPRING LEAF LEAF NO.2
20
TS SINGLE SPRING LEAF LEAF NO. 3
20
SPRING LEAF 3
23
TS SINGLE SPRING LEAF LEAF NO.4
23
SPRING LEAF 4
26
SPRING LEAF 5
29
SPRING LEAF 6 LEAF NO.6
32
SPRING LEAF 7
35
SPRING LEAF 8
38
SPRING LEAF 9
41
SPRING LEAF 10
44
BASE PLATE180X80X35 MM
47
BASE PLATE180X80X28 MM
48
INSULATING MAT BETWEEN THE SPRING LEAVES 190X78X3 MM
50
BASE180X80 MM
53
BASE PLATE 180X90X12MM
56
HELPER SPRING REAR SPRING TO REAR AXLE
56
HELPER SPRING REAR SPRING TO REAR AXLE
59
STAY REAR SPRING TO REAR AXLE
62
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
65
PLATE REAR SPRING TO REAR AXLE, NO.7390 IIIII I
68
U-BOLT REAR SPRING TO REAR AXLE M18X1.5X490
68
U-BOLT REAR SPRING TO REAR AXLE M18 X 1.5 X 510
71
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
71
WASHER FRONT SPRINGS TO FRONT AXLE
74
NUT STABILIZER TO FRONT AXLE
77
SHACKLE REAR-SPRING REAR BRACKET
80
SHACKLE PIN
80
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
83
GREASE NIPPLE PROTECTIVE TUBE
86
WASHER AS REQUIRED 4.2 MM
86
WASHER AS REQUIRED 4.0 MM
86
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
86
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
89
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
92
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
98
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
101
STOP LEFT AND RIGHT, Replaced By: A3683200429
101
STOP LEFT
101
STOP RIGHT
107
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
113
NUT BRACKET TO SIDE MEMBER M12X1.5
116
SLIDING BLOCK AT SPRING LEAF NO.270X90X13 MM
119
SLIDING BLOCK BETWEEN THE SPRING LEAVES
122
SCREW , 002979
125
HEXAGON NUT M6
130
BEARING BRACKET LEFT
130
PLATE LEFT
130
BEARING BRACKET RIGHT
130
PLATE RIGHT
140
SLEEVE BOTTOM
150
SPRING BOLT ,5 437116
150
SPRING BOLTM 12X235
150
SPRING BOLT LEAF SPRING M 12X245MM
160
NUT CLAMP TO DRAG LINK
170
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
180
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
