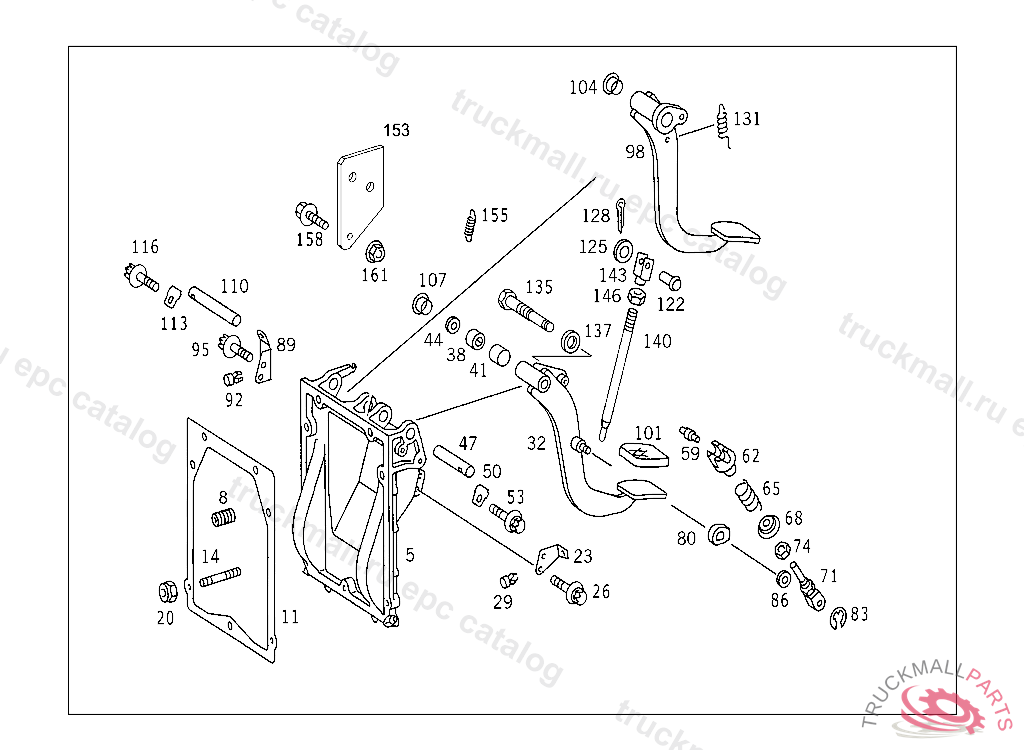

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
THREADED INSERT
11
GASKET BEARING BRACKET TO CAB
14
STUD
20
NUT HORN TO BRACKET M8
23
ANGLE STOP CLUTCH PEDAL
23
STOP CLUTCH PEDAL,D 291813
26
HEXAGON HEAD BOLT
29
STOP BRAKE PEDAL
32
CLUTCH PEDAL CLUTCH
32
PEDAL CLUTCH,D 561822
38
NEEDLE BEARING
38
NEEDLE BEARING CLUTCH PEDAL
38
NEEDLE BEARING CLUTCH PEDAL
41
SPACER TUBE CLUTCH PEDAL
44
WASHER CLUTCH PEDAL TO BEARING BRACKET
47
PIN CLUTCH PEDAL TO BEARING BRACKET
50
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
53
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
59
PIN CLUTCH PEDAL RESET
62
SPRING RETAINER CLUTCH PEDAL RESET
65
SPRING CLUTCH PEDAL RESET
68
SPRING RETAINER SPRING TO PUSH ROD
68
SPRING RETAINER CLUTCH PEDAL RESET
71
ROD CLUTCH PEDAL RESET
74
NUT CLUTCH PEDAL RESET
80
STOP CLUTCH PEDAL RESET,5 219889
80
BUFFER STOP CLUTCH PEDAL RESET
83
LOCKING WASHER. LOCK PLATE CLUTCH PEDAL RESET
86
WASHER GROUND CABLE
89
BRACKET BRAKE PEDAL,D 383712
92
STOP BRAKE PEDAL
95
HEXAGON HEAD BOLT
98
PEDAL BRAKE
98
PEDAL BRAKE
101
PAD , Replaced By: A1072910182
104
BUSHING , Replaced By: A1242920050
107
BUSHING ROD TO CLUTCH PEDAL
107
BUSH WITHOUT CHAMFER ROD TO CLUTCH PEDAL
110
PIN BRAKE PEDAL TO BEARING BRACKET
113
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
116
SCREW , Replaced By: N914146006102
122
PIN ROD TO BRAKE PEDAL
125
WASHER PULL ROD TO SHIFT LEVER
128
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
131
SPRING BRAKE PEDAL RELEASE SPRING
135
PIN ROD TO CLUTCH PEDAL
137
SPACER RING ROD TO CLUTCH PEDAL
137
WASHER
140
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
143
YOKE OPERATING ROD
146
NUT CLUTCH PEDAL PISTON ROD
153
BRACKET CLUTCH PEDAL
155
SPRING PEDAL RETURN SPRING
155
SPRING PEDAL RETURN SPRING
158
SCREW , Replaced By: N914146006102
161
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
