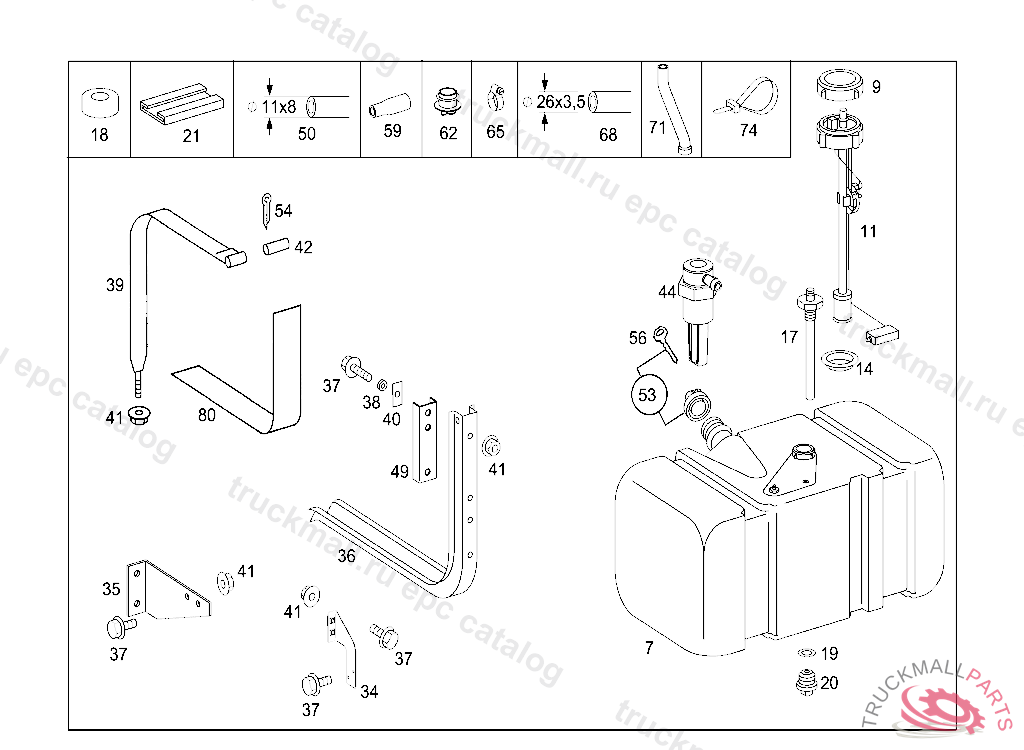

Поз.
Артикул
Описание
7
FUEL TANK210 L
7
FUEL TANK PLASTIC CONTAINER 210 L
7
FUEL TANK210 L
9
FUEL FILLER CAPTO A 979 470 01 03,D 287970
9
FILLER CAPTO A 695 470 00 01/01 03
11
FUEL GAUGE DASH UNITTO A 695 470 00 01/01 03
14
SEAL RINGTO A 695 470 00 01/01 03
17
LINE FUEL TANK TO A 979 470 01 03,D 339846
17
LINETO A 695 470 00 01
19
SEAL RING FUEL STRAINER SCREEN
20
FITTING
20
FITTINGTO A 695 470 00 01
21
U-PROFILE FUEL TANK MOUNTING 330MM,M 044434
21
SUPPORT FUEL TANK MOUNTING
34
BRACKET BRACKET TO LEFT SIDE MEMBER
34
BRACKET BRACKET TO RIGHT SIDE MEMBER
35
BRACKET BRACKET TO RIGHT SIDE MEMBER
35
BRACKET BRACKET TO LEFT SIDE MEMBER
36
CONSOLE FUEL TANK,FRONT AND REAR
37
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
37
HEXAGON HEAD BOLT TORSION BAR TO SHACKLE M12X1,5X110MM
37
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
37
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
37
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
39
STRAP FUEL TANK TO SUPPORT
41
NUT BRACKET TO SIDE MEMBER M12X1.5
41
NUT SUPPORT TO FRAME
42
PIN STRAP TO CONSOLE
44
AERATION VALVE. VALVE TANK VENT VALVE
44
VALVE (VENT VALVE)
49
BASE FUEL TANK TO FRAME
53
FILLER CAP FILLER CAP TO A 388 470 69 01
54
COTTER PIN STRAP TO SUPPORT
56
KEY
59
HOSE FILLER PIPE
62
FILLER NECK FILLER PIPE
65
CLAMP
65
CLAMP , Replaced By: A0069970890
68
HOSE FILLER PIPE 1020MM
71
HOSE FILLER PIPE980MM
71
FUEL HOSE FILLER PIPE 931.5MM
74
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
80
SHIM FUEL TANK TO CONSOLE
999
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
