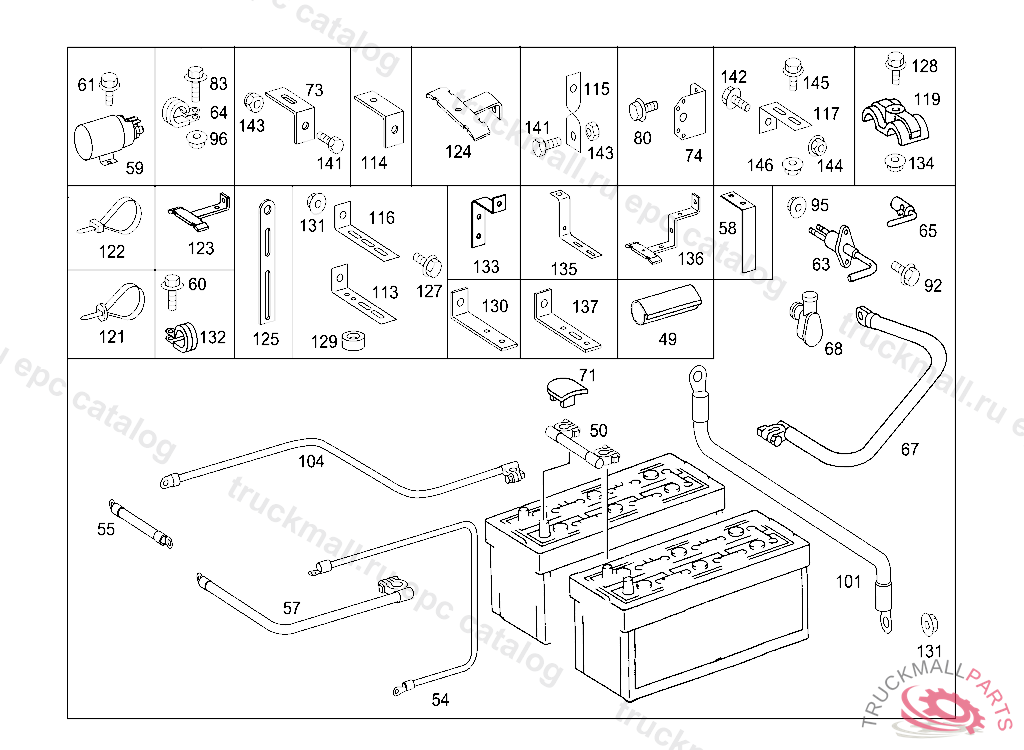

Поз.
Артикул
Описание
49
INSULATING HOSE HEAT INSULATION FOR FRAME WIRING HARNESS 50MM, ORDER BY THE METER
50
POSITIVE CABLE FROM BATTERY I TO BATTERY II
54
POSITIVE CABLE FROM BATTERY MASTER SWITCH TO FUSE,D 334766
55
POSITIVE CABLE FROM BATTERY MASTER SWITCH TO FUSE BOX 550 MM
55
POSITIVE CABLE FROM BATTERY MASTER SWITCH TO STARTING MOTOR3500 MM
57
POSITIVE CABLE FROM BATTERY NEG. POLE TO GROUND,D 090324
59
RELAY MAKE PULSE 24V / 300A
59
RELAY SAFETY MASTER SWITCH 300A
59
RELAY300 A,D 282361
60
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
60
SCREW , Replaced By: N914146006102
61
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
61
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
63
SWITCH BATTERY CUT-OFF
63
SWITCH BATTERY CUT-OFF
64
CLAMP , Replaced By: A3829950701
64
CLAMP CONNECTING HOSES TO BRACKET
64
CLAMP LINE MOUNTING
64
CLAMP COMPRESSED AIR LINE MOUNTING 38/20
64
CLAMP LINES TO BRACKET
64
CLAMP SUCTION LINE TO CROSS MEMBER
65
KEY
68
COVERING BATTERY CUT-OFF,D 262514
71
BOOT POS. POLE
74
BRACKET SWITCH TO BATTERY SUPPORT
80
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
83
SCREW , Replaced By: N000000001479
83
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
83
SCREW BRACKET AND CLAMP M6X20
83
SCREW BATTERY CABLE TO BRACKET M6X45
83
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
83
SCREW SHIFT LEVER TO BRACKET M8X30
92
SCREW BRACKET AND CLAMP M6X20
95
NUT BRACKET TO FIRE WALL
96
NUT BRACKET TO FIRE WALL
96
NUT HORN TO BRACKET M8
96
NUT BRACKET TO SIDE MEMBER M12X1.5
101
NEG. CABLE ELECTRIC CABLE TO FUSE BOX,D 291813
101
NEG. CABLE1600 MM
104
NEG. CABLE FROM BATTERY TO SIDE MEMBER4500MM
113
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
114
BRACKET HYDRAULIC LINE MOUNTING PARTS,D 291813
114
BRACKET 77 X 70 X 50 MM
114
BRACKET FUEL LINE TO SIDE MEMBER
115
BRACKET LINE MOUNTING
116
BRACKET LEFT SIDE MEMBER,D 030553
116
BRACKET TO ENGINE
116
BRACKET BATTERY CABLE
117
BRACKET , Replaced By: A3464296040
117
BRACKET LINE MOUNTING
117
BRACKET FUEL LINE
119
CLAMP ELECTRIC CABLE MOUNTING
121
LOOM TIE LINE MOUNTING
122
LOOM TIE LINE MOUNTING
122
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
122
LOOM TIE
122
LOOM TIE LINE TO BRACKET 508 MM
122
LOOM TIE ELECTRIC CABLE MOUNTING
122
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
123
BRACKET AT RIGHT SIDE MEMBER
124
BRACKET TO MOUNT FUEL LINES
125
BRACKET
127
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
128
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
129
WASHER BRACKET TO LEFT SIDE MEMBER
129
WASHER , Replaced By: A3609902340
130
BRACKET MOUNTING OF CABLE HARNESS ON FRAME
131
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
132
CLAMP , Replaced By: A3829950701
132
CLAMP
132
CLAMP HOSE TO COOLING WATER PIPE
133
BRACKET
134
NUT BRACKET TO FIRE WALL
135
BRACKET OIL LINE
136
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
137
BRACKET LEFT SIDE MEMBER,D 030553
141
SCREW BRACKET TO CAB REAR PANEL M 8X20
141
HEXAGON HEAD BOLT ALTERNATOR TO SUPPORT M10X130
142
SCREW BRACKET TO CAB REAR PANEL M 8X20
142
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
143
NUT HORN TO BRACKET M8
143
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
144
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
144
NUT HORN TO BRACKET M8
145
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
146
NUT BRACKET TO FIRE WALL
