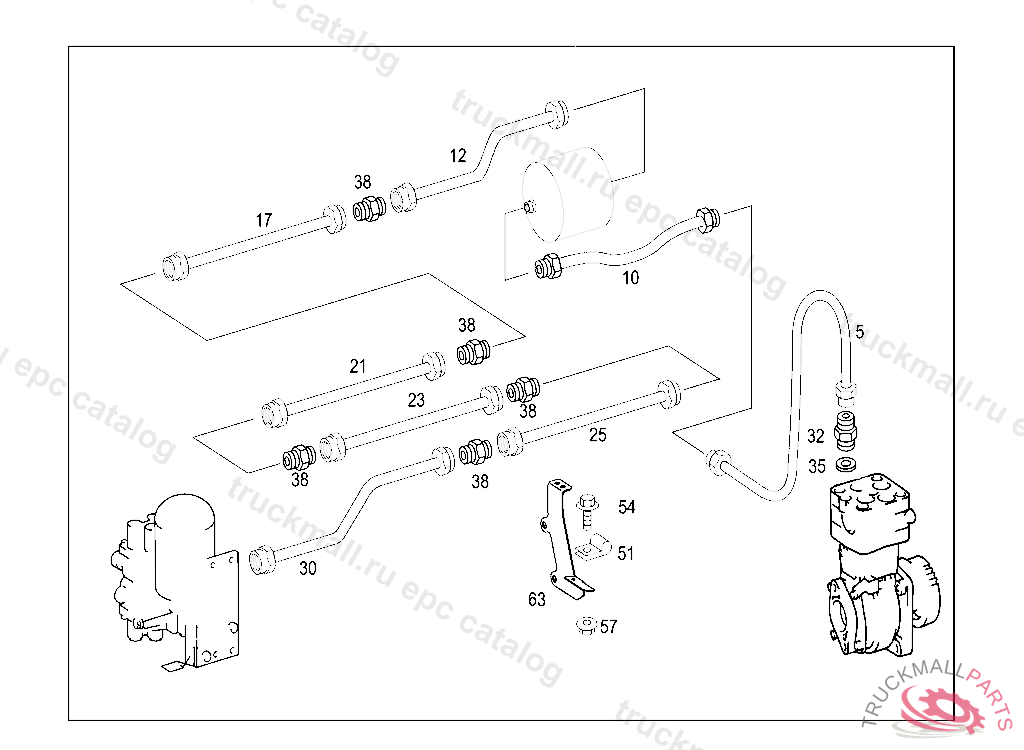

Поз.
Артикул
Описание
5
LINE FROM AIR COMPRESSOR TO HOSE "I"-1140MM
10
BRAKE HOSE COMPRESSED AIR HOSE
12
LINE FROM RESERVOIR TO FITTING "II"-1140MM
17
LINE FROM FITTING TO DOUBLE FITTING "III"-1624MM
21
LINE FROM FITTING TO FITTING "IV"-1165MM
23
LINE FROM FITTING TO FITTING "V"-1595MM
25
LINE FROM FITTING TO FITTING "VI"-1625MM
30
LINE FROM FITTING TO VALVE "VII"-1226MM
32
CONNECTOR AT AIR COMPRESSOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
35
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
38
CONNECTION FITTING , Replaced By: N003902018002
