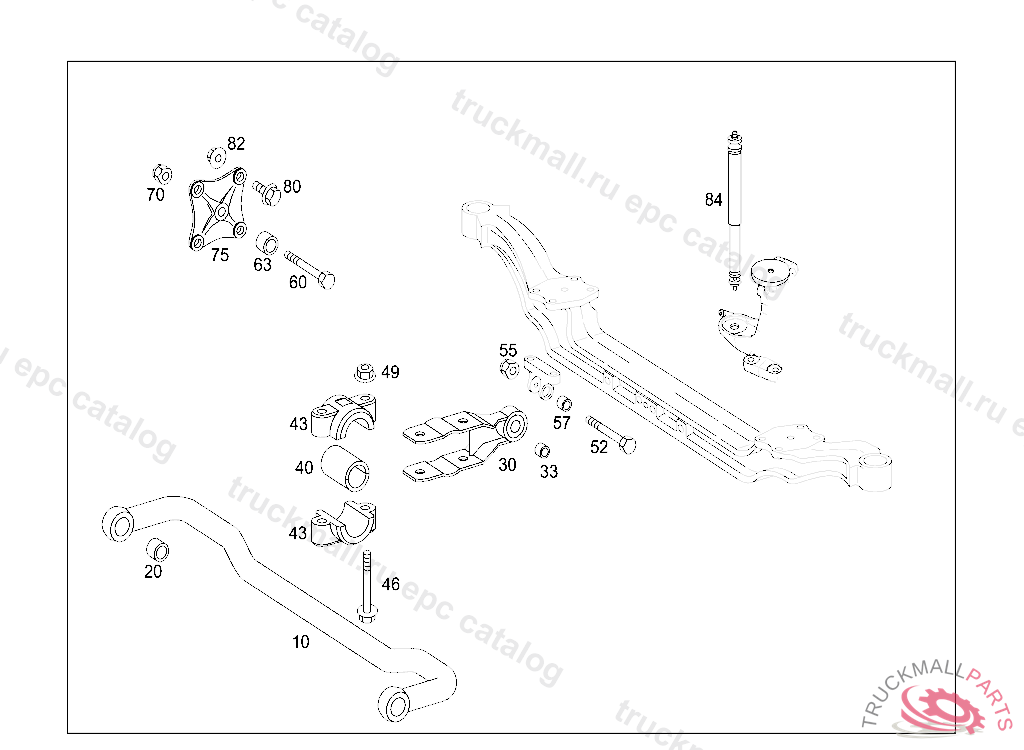

Поз.
Артикул
Описание
10
TORSION BAR AT FRONT AXLE
20
BUSHING FRONT STABILIZER
30
SHACKLE FRONT STABILIZER
33
BUFFER FRONT AXLE STABILIZER
40
RUBBER BUFFER SHACKLE TO TORSION BAR
43
BEARING SHELL TORSION BAR TO SHACKLE, NO.7390I I I I II
46
HEXAGON HEAD BOLT TOWING EYE TO FRAME M12X1.5X100
49
NUT BRACKET TO SIDE MEMBER M12X1.5
52
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
55
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
57
BUSHING SHACKLE TO BRACKET
60
SCREW STEERING ARM TO STEERING KNUCKLE
60
SCREW STEERING ARM TO STEERING KNUCKLE
63
WASHER SHACKLE TO CONSOLE
70
NUT FRONT SPRING TO SPRING BRACKET
75
BEARING BRACKET STAB. BAR STABILIZER TO BEARING
80
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
80
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
82
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
84
SHOCK ABSORBER AT FRONT AXLE
