Поз.
Артикул
Описание
5

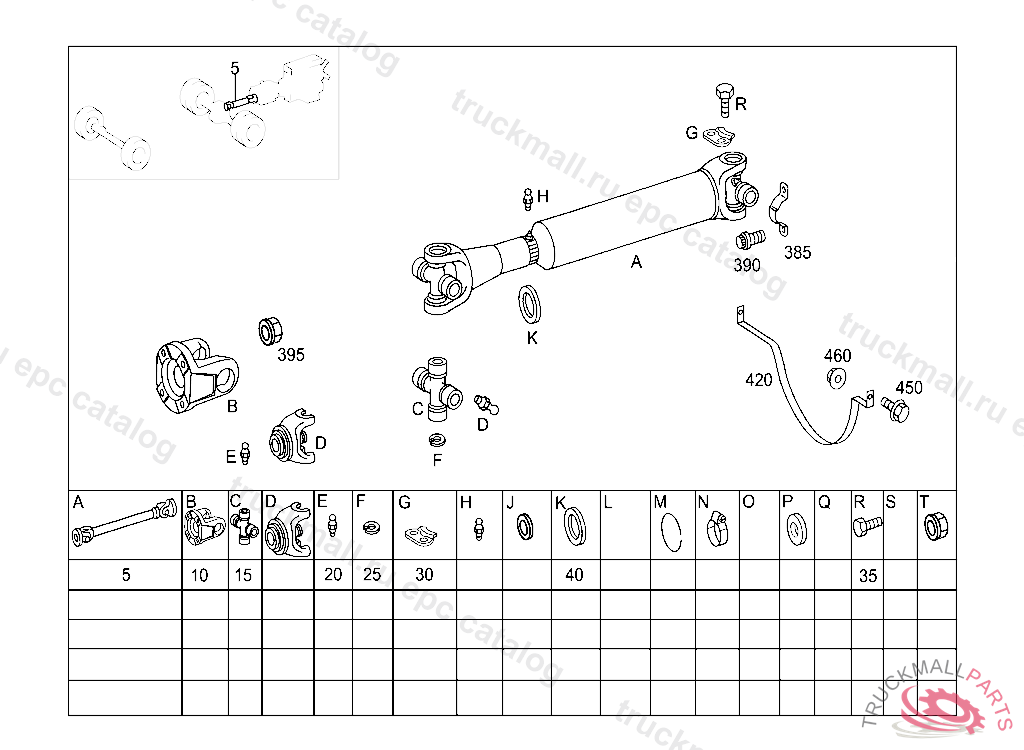

PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 743 MM
5
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 762 MM
5
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 687 MM
10
FLANGETO A 382 410 17 02
15
UNIVERSAL JOINT CROSSTO A 368 410 03 02
15
UNIVERSAL JOINT CROSSTO A 628 410 11 02
20
GREASE NIPPLE THREADED TO A 384 410 85 17
20
GREASE NIPPLE
25
SNAP RING PARTS KIT
30
LOCK
35
SCREW
40
SEAL RING
385
CLAMP PROPELLER SHAFT TO TRANSMISSION
385
CLAMP PROPELLER SHAFT TO REAR AXLE I
390
SCREW PROPELLER SHAFT TO TRANSMISSION
390
SCREW PROPELLER SHAFT TO REAR AXLE I
420
REBOUND STRAP AT FRAME
450
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
460
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
