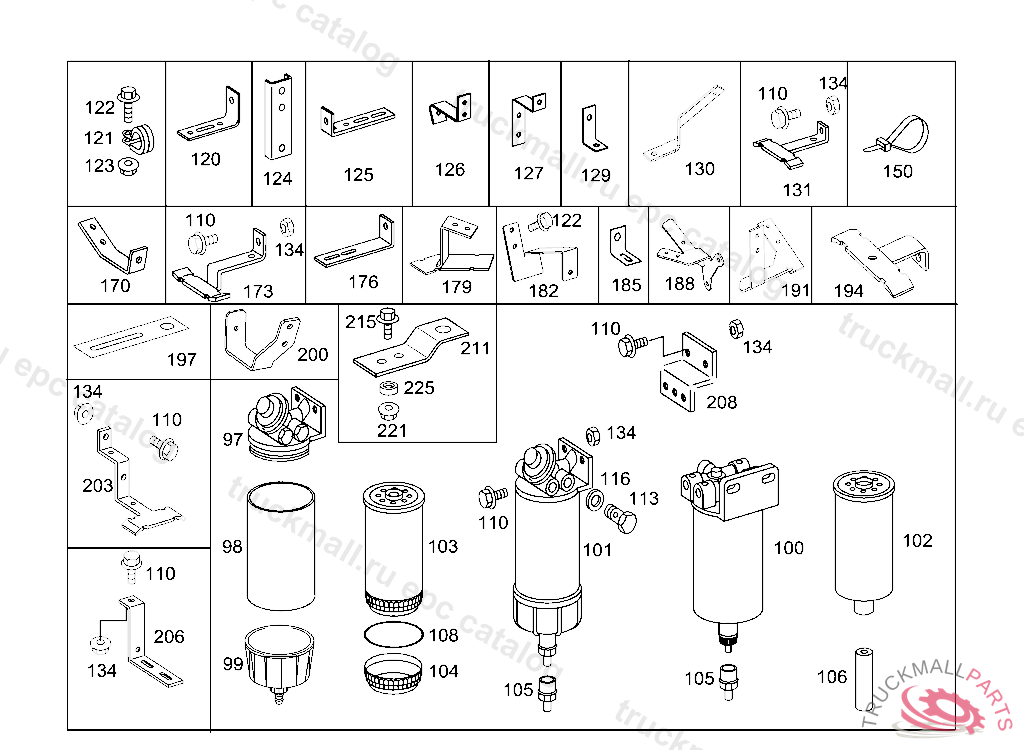

Поз.
Артикул
Описание
100
FILTER WATER SEPARATOR
100
FILTER FUEL,D 180260
101
FUEL FILTERMANN
101
FUEL FILTER
102
FILTER
103
FILTER ELEMENTTORACOR
103
FILTER ELEMENTTOMANN
104
FILTER BOWL. TRAY
104
PART NAME MISSINGTOA 958 470 04 90 (MANN)
105
FITTING. FILTER
106
HOSE TRAILER BRAKE VALVE,CONNECTION:
108
SEALING RINGTO A 958 477 01 16
110
SCREW BRACKET TO SIDE MEMBER M10X35
110
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
110
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
113
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
113
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
113
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
113
HOLLOW SCREW OIL LINE
116
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
121
CLAMP , Replaced By: A3829950701
121
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
121
CLAMP HOSE TO FLANGE AND TO VALVE
121
CLAMP COMPRESSED AIR LINE MOUNTING 38/20
122
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
122
SCREW BRACKET TO CAB REAR PANEL M 8X20
122
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
122
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
123
NUT BRACKET TO FIRE WALL
123
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
131
BRACKET AT RIGHT SIDE MEMBER
134
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
150
LOOM TIE LINE MOUNTING
173
BRACKET FUEL LINE FIXTURE
176
BRACKET LINE MOUNTING
176
BRACKET , Replaced By: A3464296040
179
BRACKET FUEL LINE FIXTURE
182
BRACKET FUEL LINE TO ENGINE
203
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
206
BRACKET OIL LINE
208
BRACKET FUEL FILTER MOUNTING
