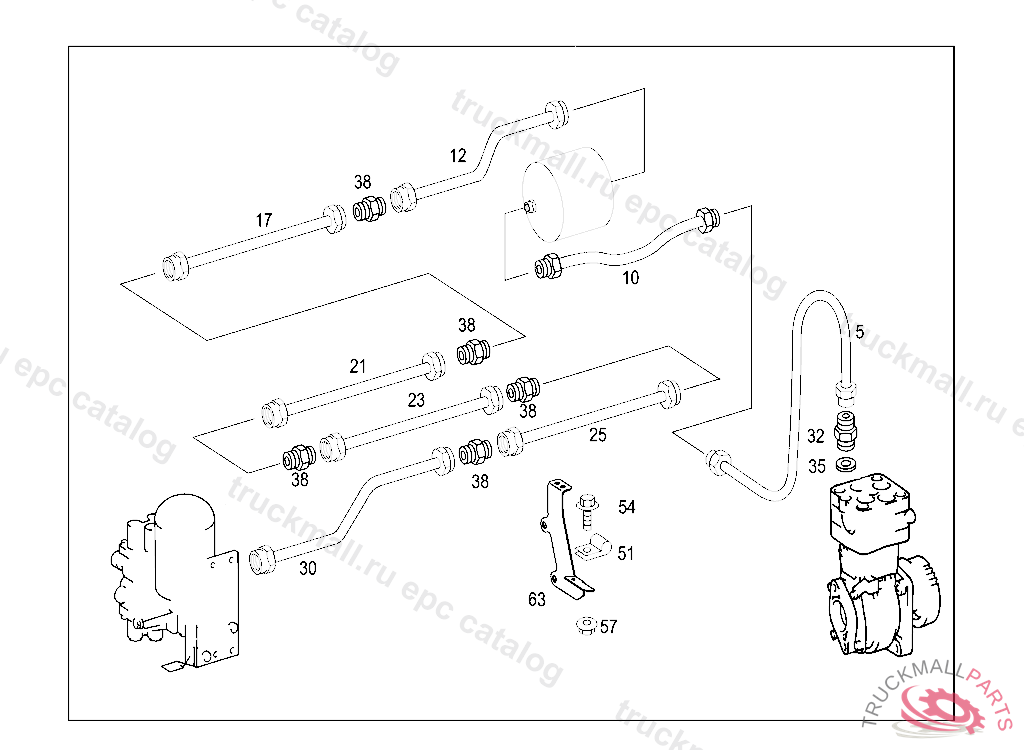

Поз.
Артикул
Описание
5
LINE FROM AIR COMPRESSOR TO HOSE "I"-880MM
10
BRAKE HOSE COMPRESSED AIR HOSE
12
COMPRESSED AIR LINE FROM FITTING TO DOUBLE FITTING "II"- 1964MM
17
LINE FROM FITTING TO DOUBLE FITTING "III"-1624MM
21
COMPRESSED AIR LINE FROM FITTING TO FITTING "IV"-1865MM
23
LINE FROM FITTING TO FITTING "V"-1595MM
25
LINE FROM FITTING TO FITTING "VI"-1625MM
30
LINE FROM FITTING TO VALVE "VII"-1226MM
32
CONNECTOR AT AIR COMPRESSOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
35
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
38
CONNECTION FITTING , Replaced By: N003902018002
