Поз.
Артикул
Описание

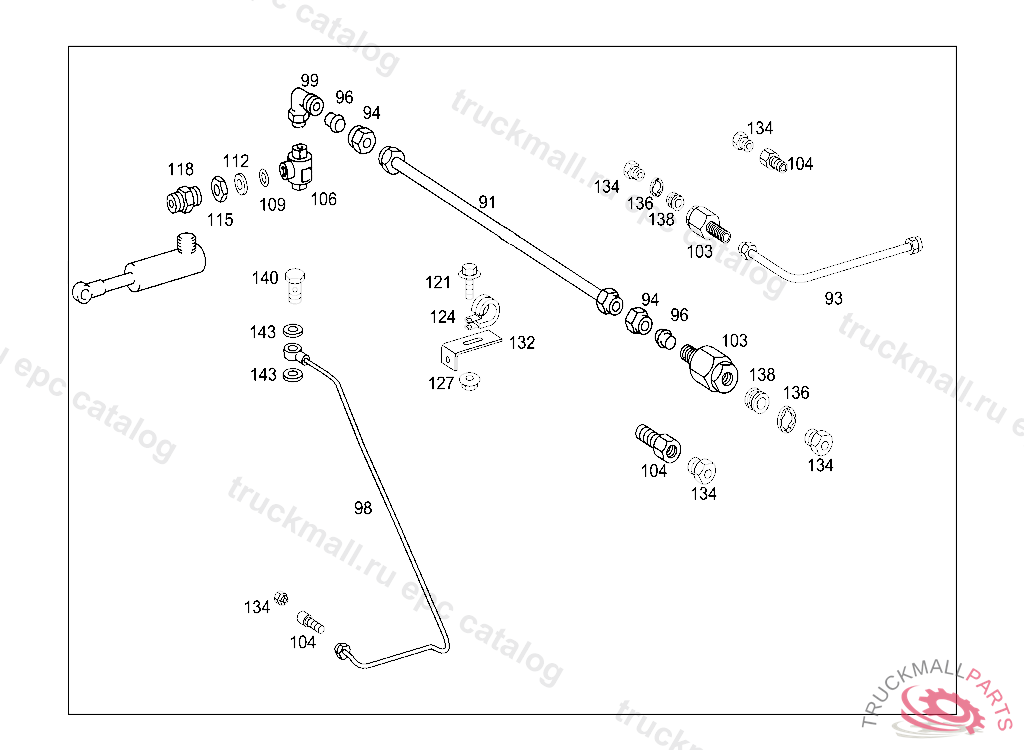

91
LINE EXHAUST BRAKE COMPRESSED AIR LINE
93
LINE AIR CONDITIONER 1.300MM
94
UNION NUT
96
GLAND , Replaced By: A0019901667
99
ELBOW FITTING SINGLE CIRCUIT PISTON CYLINDER, CONNECTION:
103
THROTTLE HOUSING. FITTING
104
ADAPTER FITTING TEST CONNECTION
106
VALVE (QUICK-RELEASE VALVE)
109
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
112
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
115
NUT BRACKET TO SIDE MEMBER M12X1.5
115
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
118
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
134
SCREW. UNION SCREW , Replaced By: A0009973734
134
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
136
LOCK , Replaced By: A0009945448
138
SEAL RING , Replaced By: A0009940747
