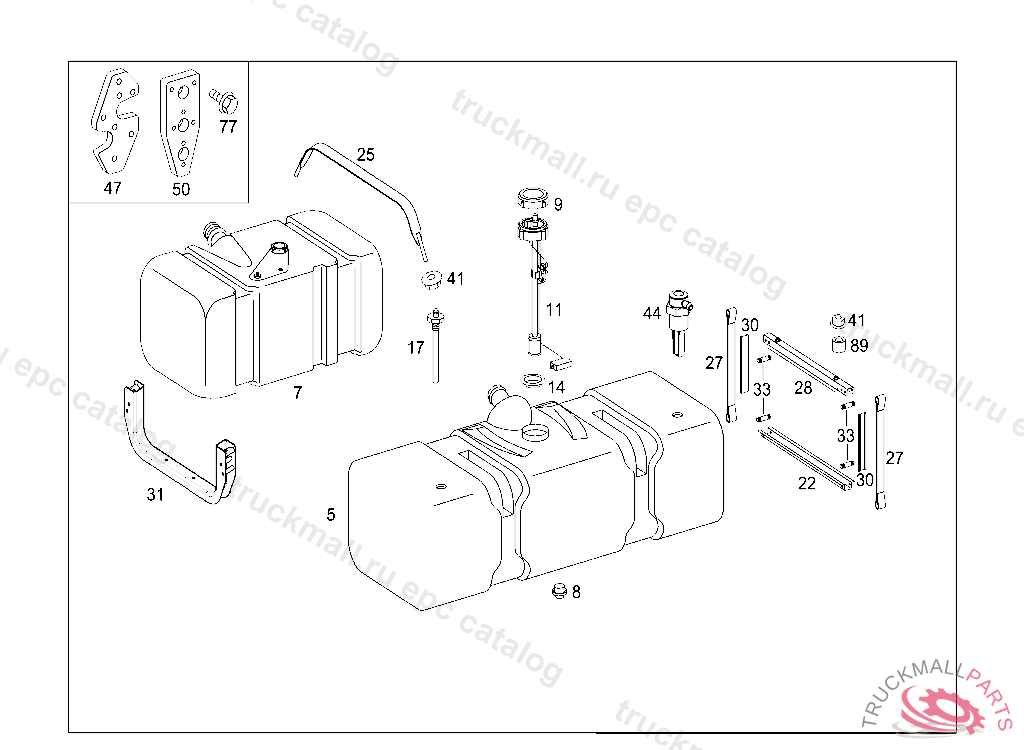

Поз.
Артикул
Описание
7
FUEL TANK210 L
7
FUEL TANK210 L
9
FUEL FILLER CAPTO A 979 470 01 03,D 287970
9
FILLER CAPTO A 695 470 00 01/01 03
11
FUEL GAUGE DASH UNITTO A 695 470 00 01/01 03
14
SEAL RINGTO A 695 470 00 01/01 03
17
LINETO A 695 470 00 01
41
NUT BRACKET TO SIDE MEMBER M12X1.5
44
AERATION VALVE. VALVE TANK VENT VALVE
44
VALVE (VENT VALVE)
47
INSERT FUEL TANK MOUNTING
50
INSERT FUEL TANK MOUNTING
77
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
77
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
