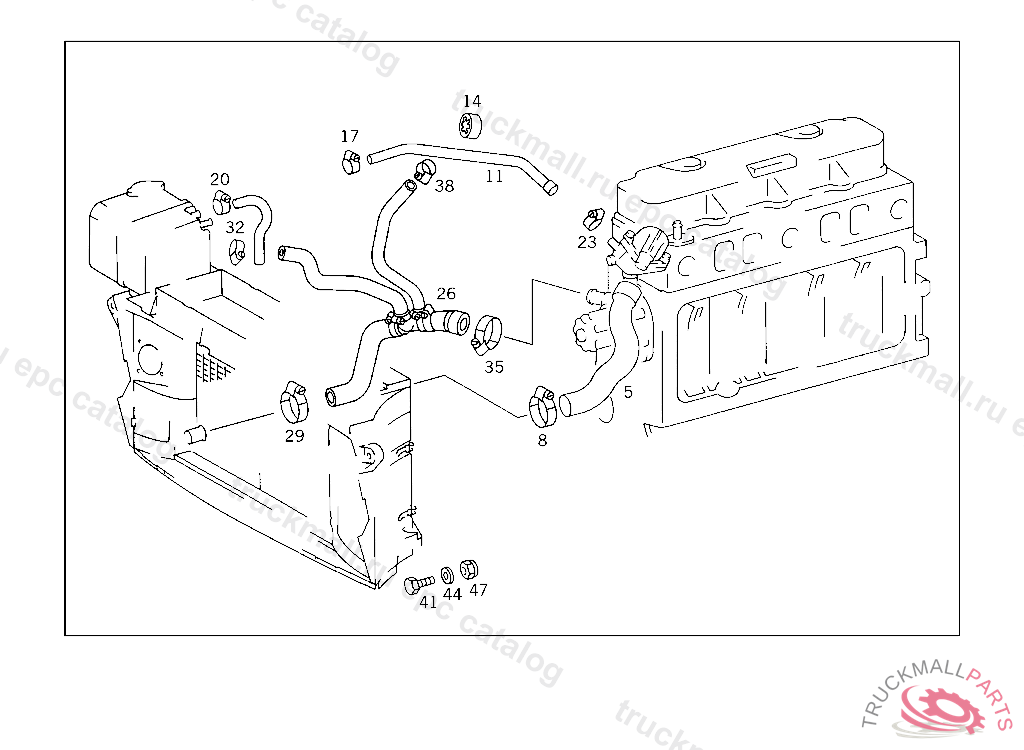

Поз.
Артикул
Описание
5
HOSE FROM THERMOSTAT TO RADIATOR
8
CLAMP
8
CLAMP , Replaced By: N000000000671
11
HOSE DE-AERATION, FROM EXPANSION TANK TO THERMOSTAT
14
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
17
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
17
CLAMP , Replaced By: N916017011001
20
CLAMP , Replaced By: N916017011001
20
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
23
CLAMP HOSE TO FITTING AND TO OIL TANK
23
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
26
HOSE FROM WATER PUMP TO RADIATOR
29
CLAMP , Replaced By: N000000000670
29
CLAMP
32
CLAMP25-40X13 MM
32
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
35
CLAMP , Replaced By: N000000000671
35
CLAMP
38
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
38
CLAMP , Replaced By: N000000000667
