Поз.
Артикул
Описание
5

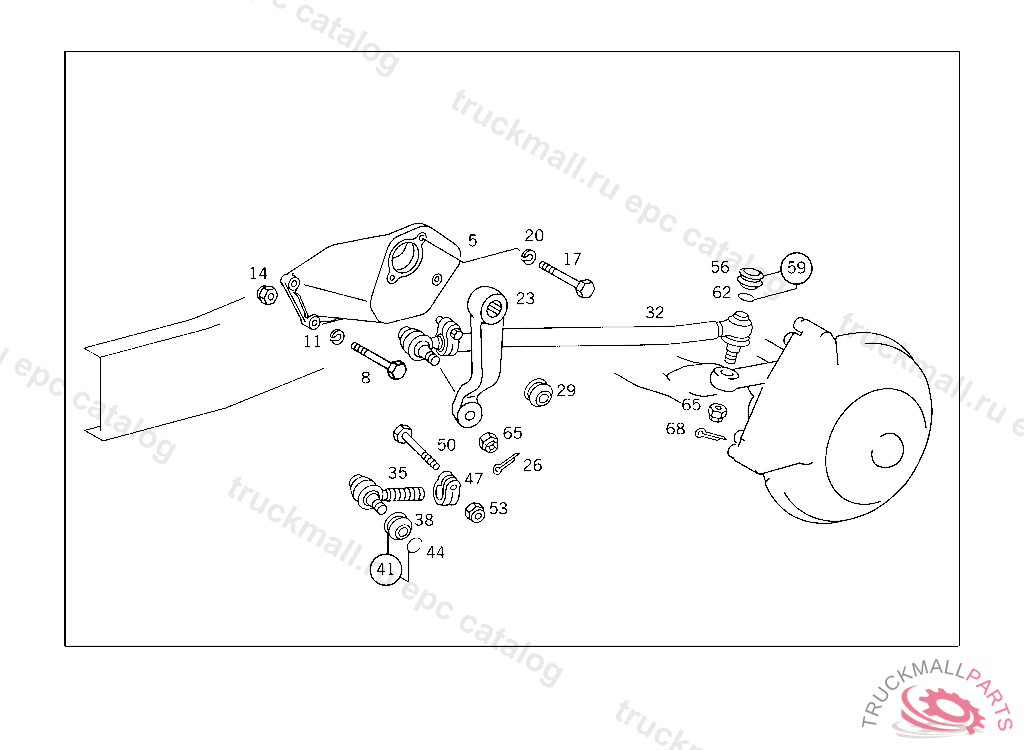

STEERING SUPPORT
8
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
8
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
8
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
11
LOCK WASHER FITTING TO BRACKET
14
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
14
NUT , Replaced By: N910113012003
17
SCREW STEERING GEAR TO STEERING BRACKET
20
LOCK WASHER BELL HOUSING TO TRANSMISSION
23
PITMAN ARM
26
COTTER PIN , UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
29
BOOT
32
DRAG LINKNAKATA
32
DRAG LINKTRW
35
DRAG LINK ENDTO 688 460 05 05,75 05,74 05,76 05
35
DRAG LINK ENDTO 688 460 03 05,77 05,79 05
38
BOOTTO 000 460 63 48
41
BOOTTO 000 460 62 48
44
RINGTO 000 463 20 96
47
CLAMP JOINT TO DRAG LINK TO 688 460 03 05,77 05, 78 05
47
CLAMP JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
47
CLAMPING PIECE JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
50
SCREW CLAMP TO DRAG LINK TO 000 463 05 17
50
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
53
NUT , Replaced By: N910113010003
56
BOOT FIXED PART OF JOINT TO 688 460 03 05,77 05,79 05,78 05
59
BOOT FIXED PART OF JOINT TO 688 460 05 05,75 05,74 05,76 05
62
RINGTO 000 463 20 96
65
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
68
COTTER PINROCKINGER TYP 260 G140
