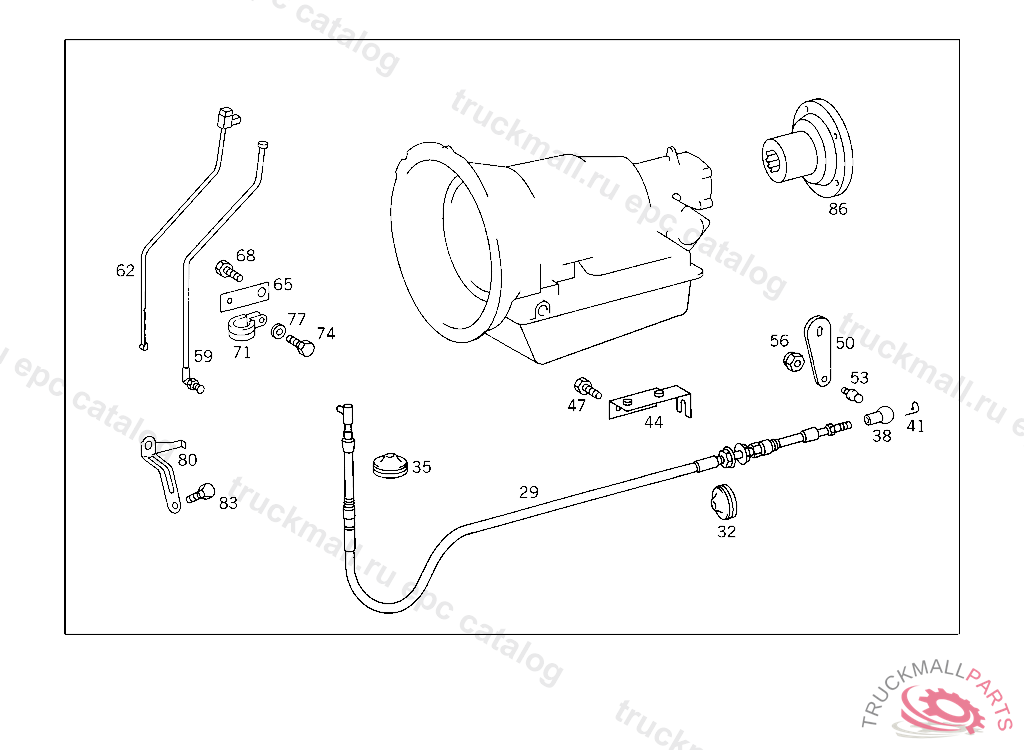

Поз.
Артикул
Описание
29
WIRE CABLE
32
GROMMET FOR PASSAGE OF LINE
35
GROMMET
38
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
41
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
44
BRACKET BRACKET TO OIL PAN
47
SCREW BRACKET TO OIL PAN
47
SCREW , Replaced By: A1249904601
50
LEVER LEVER TO SHIFTING SHAFT
53
BALL PIVOT ACCELERATOR PEDAL,4 859026
53
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
56
NUT , Replaced By: N913004006001
59
OIL FILLER PIPE
62
OIL DIPSTICK
65
BRACKET OIL FILLER NECK
68
SCREW BRACKET TO TRANSMISSION,5 360280
71
CLAMP OIL DIPSTICK TO RADIATOR
74
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
SCREW , Replaced By: N304017008016
77
WASHER , Replaced By: N000125008443
80
BRACKET FLYWHEEL HOUSING
83
SCREW , Replaced By: N304017016011
86
FLANGE P.T.O.
