Поз.
Артикул
Описание
5

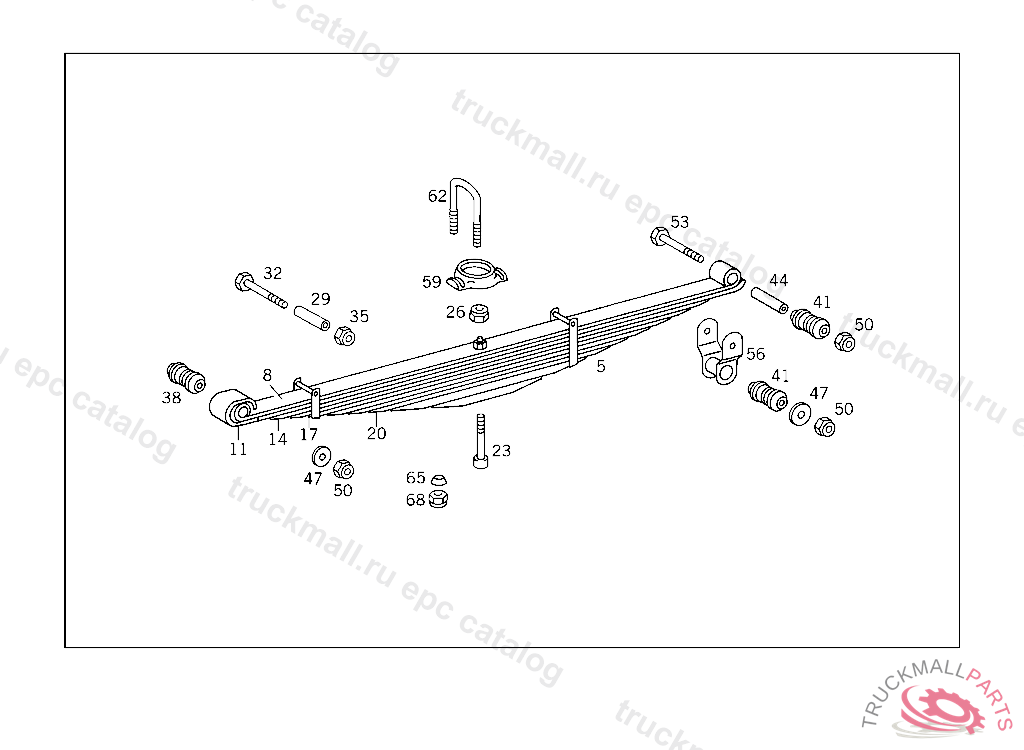

REAR SPRING 10-LEAF,D 144514
8
SPRING LEAFNO.1, TO 688 320 03 06,D 144514
11
SPRING LEAFNO.2, TO 688 320 03 06,D 144514
14
SPRING LEAFNO.3, TO 688 320 03 06,D 144514
17
SPRING LEAFNO.5, TO 688 320 03 06,D 144514
20
SPRING LEAFNO.8
23
SPRING BOLT REAR SPRING M10X150
26
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
29
SPACER TUBE , Replaced By: A0003213253
32
SCREW
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
NUT , Replaced By: N913004008001
38
RUBBER BUFFER SPRING EYE,FRONT
41
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
44
SPACER TUBE REAR SPRING TO SPRING SHACKLE
47
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
50
NUT TORSION BAR TO BEARING BRACKET,5 904661
53
SCREW REAR SPRING TO SPRING SHACKLE
56
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
59
PLATE FRONT SPRINGS TO FRONT AXLE
62
U-BOLT REAR SPRING TO REAR AXLE M 16X1,5X210MM
65
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
68
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
