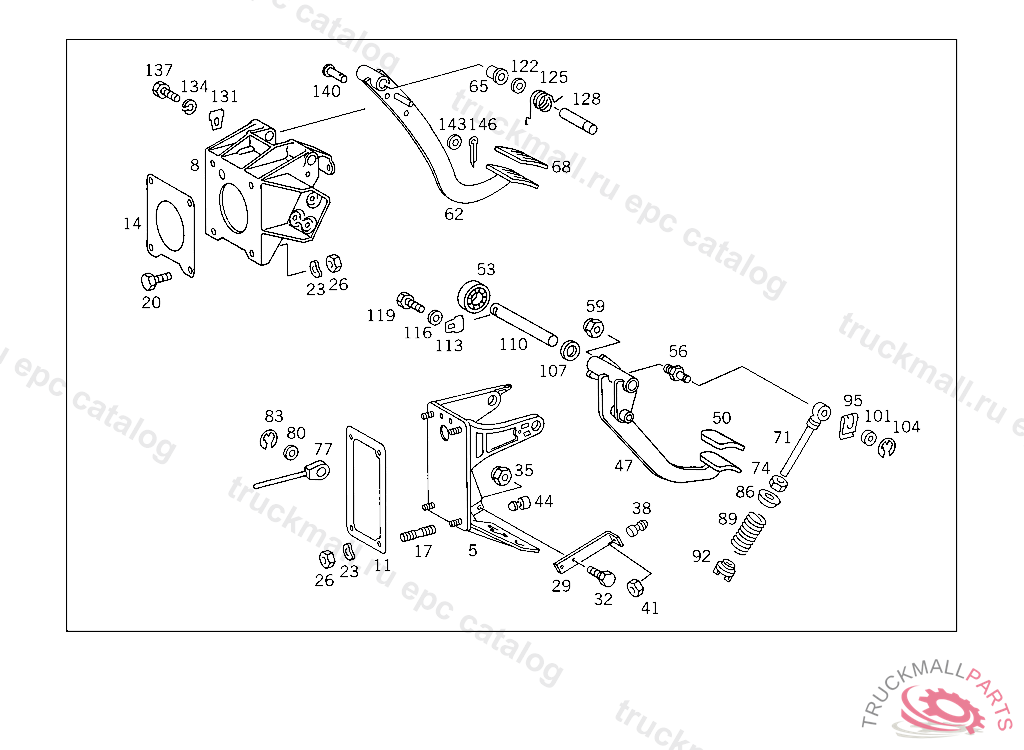

Поз.
Артикул
Описание
8
BEARING BRACKET BRAKE PEDAL
8
BEARING BRACKET , Replaced By: A3842947201
14
GASKET BEARING BRACKET TO CAB
20
SCREW SUPPORT TO FENDER
20
SCREW , Replaced By: N304017008018
23
SPRING WASHER CABLE TO ALTERNATOR
26
NUT
26
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
62
PEDAL BRAKE
65
BUSHING , Replaced By: A1242920050
68
PAD BRAKE PEDAL
122
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
125
SPRING BRAKE PEDAL TO BEARING BRACKET
128
PIN , Replaced By: A6452940074
128
PIN CLUTCH PEDAL TO BEARING BRACKET
131
LOCK , Replaced By: A6732920073
134
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
134
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
137
SCREWM 6X12
140
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
143
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
146
COTTER PIN
