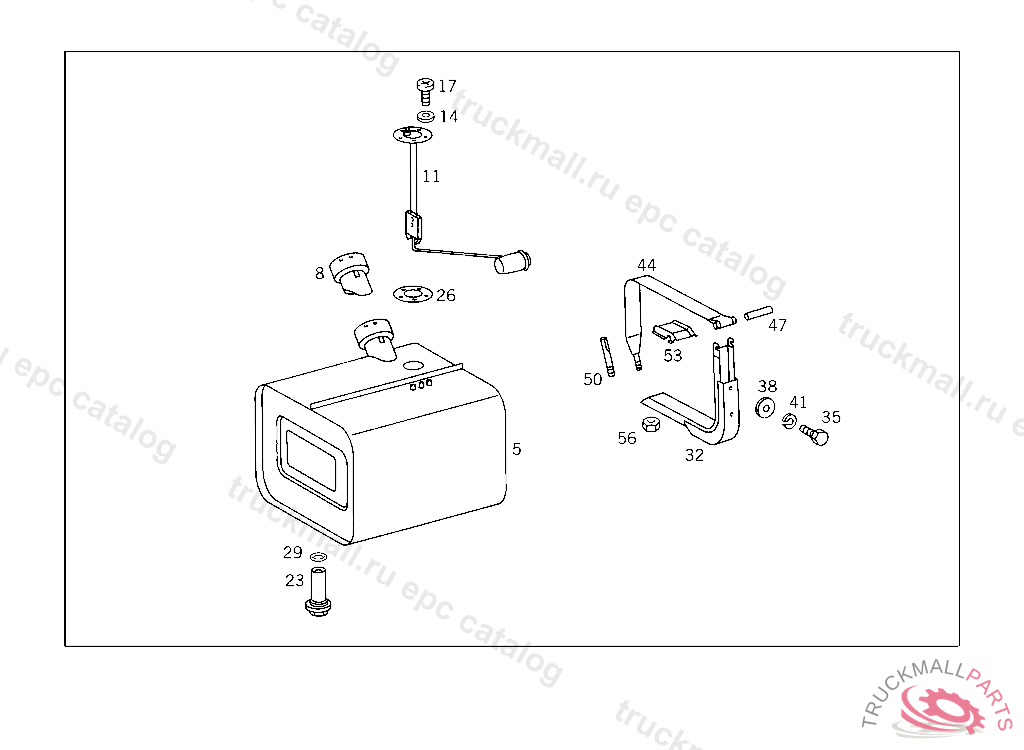

Поз.
Артикул
Описание
5
FUEL TANK
8
FILLER CAP , TO BE ADAPTED DURING ASSEMBLY
8
FILLER CAP , Replaced By: A0004716630
11
SENDER UNIT FUEL GAUGE
14
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
17
SCREW HOOK TO BRACKET
17
SCREW STEP SWITCH
23
FUEL STRAINER
26
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
29
SEAL RING FUEL STRAINER SCREEN
32
SUPPORT
35
SCREW CONSOLE TO SIDE MEMBER
38
WASHER LEAF SPRING TO STRUT
41
LOCK WASHER FITTING TO BRACKET
44
STRAP
47
CLAMPING SCREW STRAP TO SUPPORT
50
PIN
53
BASE STRAP TO SUPPORT
56
NUT STRAP TO SUPPORT
