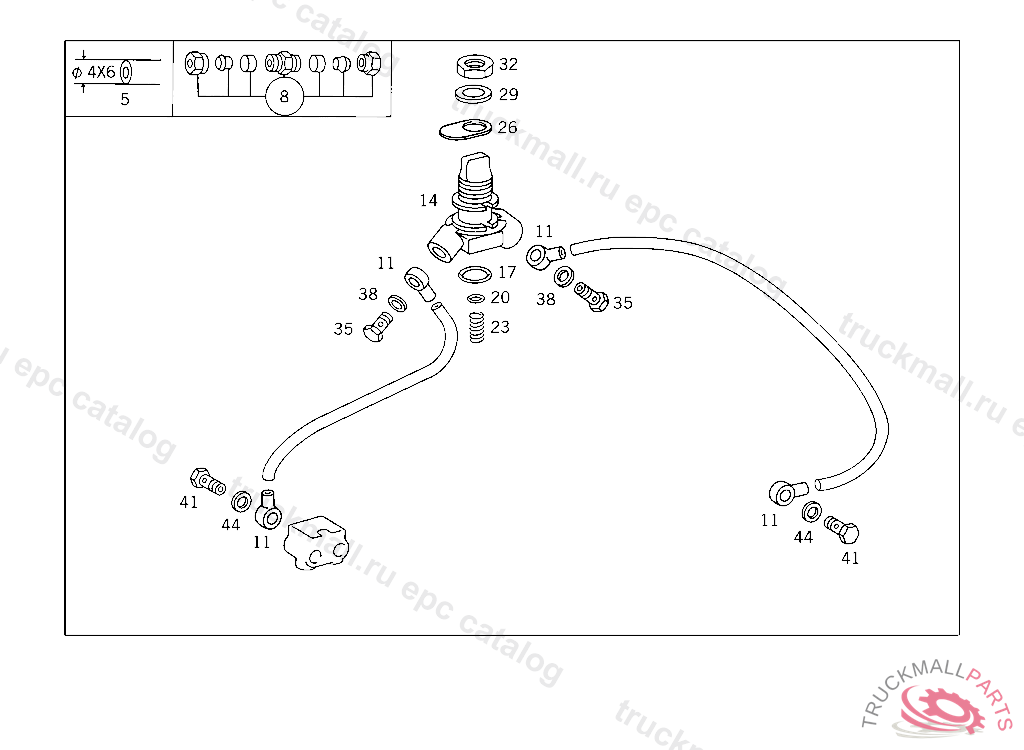

Поз.
Артикул
Описание
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
11
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
14
VALVE 3/2-WAY KNORR
14
VALVE 3/2-WAY BOSCH
14
VALVE 3/2-WAY WABCO
14
VALVE 3/2-WAY VOSS
17
SEAL RING TOP WABCO
20
SEAL RING INSIDE WABCO
23
SPRING INSIDE WABCO
26
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
29
WASHER AT TWO-WAY VALVE
32
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
35
HOLLOW SCREW LINE CONNECTION
38
SEAL RING LINE CONNECTION
41
HOLLOW SCREW HEATING CONNECTION
44
SEAL RING LINE CONNECTION
