Поз.
Артикул
Описание
5

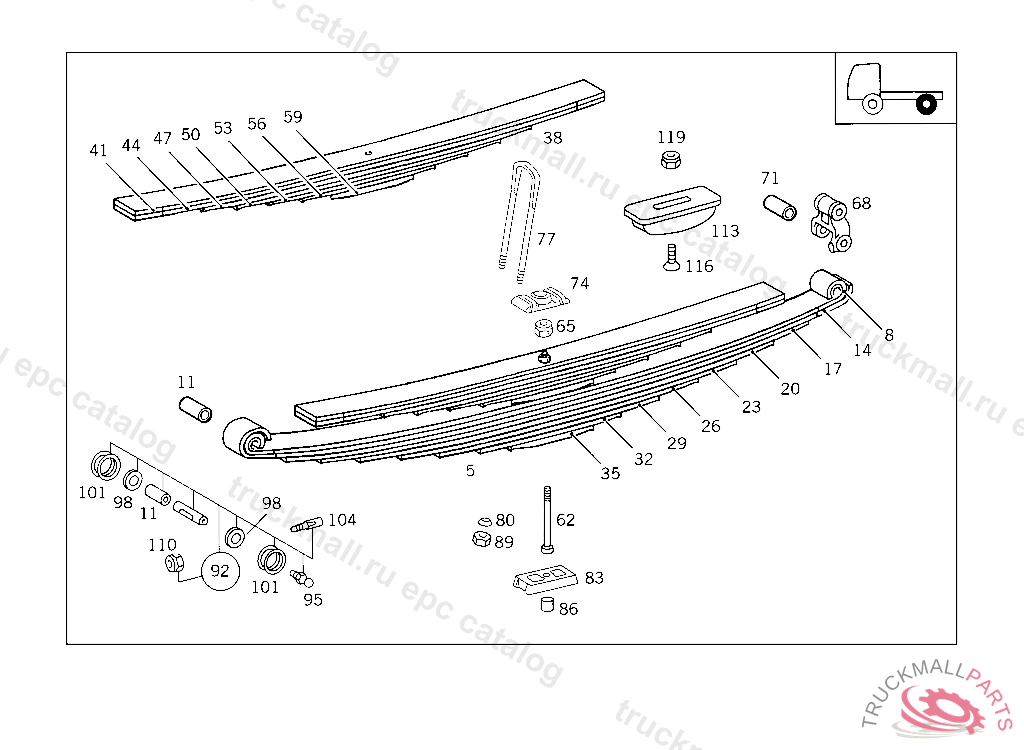

REAR SPRING 9-LEAF,WITH 7-LEAF HELPER SPRING, 385 991 04 64 SHEAR BUSHING TO BE ELIMINATED UP TO CHASSIS 4 889187, SEE SERVICE INFORMATION 32/8
8
SPRING LEAFNO.1,4 695194
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2,4 695194
17
SPRING LEAFNO.3
20
SPRING LEAFNO.4
23
SPRING LEAFNO.5
26
SPRING LEAFNO.6
29
SPRING LEAFNO.7
32
SPRING LEAFNO.8
35
SPRING LEAFNO.9
38
HELPER SPRING 7-LEAF
41
SPRING LEAFNO.1
44
SPRING LEAFNO.2
47
SPRING LEAFNO.3
50
SPRING LEAFNO.4
53
SPRING LEAFNO.5
56
SPRING LEAFNO.6
59
SPRING LEAF , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3853240619
62
SPRING BOLTM 12X295,4 899188
65
NUT BRACKET TO BEARING BRACKET
68
SHACKLE REAR SPRING SUSPENSION
71
BUSHING
71
BUSHING
74
77
80
WASHER REAR SPRING TO REAR AXLE
83
86
PIN BEARING BRACKET
89
NUT REAR SPRING TO REAR AXLE
92
SHACKLE PIN (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET
95
GREASE NIPPLE PROTECTIVE TUBE
98
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
98
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
98
WASHER , Replaced By: A3523231076
101
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
104
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
110
NUT EXHAUST PIPE TO SIDE MEMBER
113
RUBBER MOUNTING AXLE STOP
116
SCREW SLIDING PLATE M8X1,5X35
119
NUT BRACKET TO BRACKET
