Поз.
Артикул
Описание

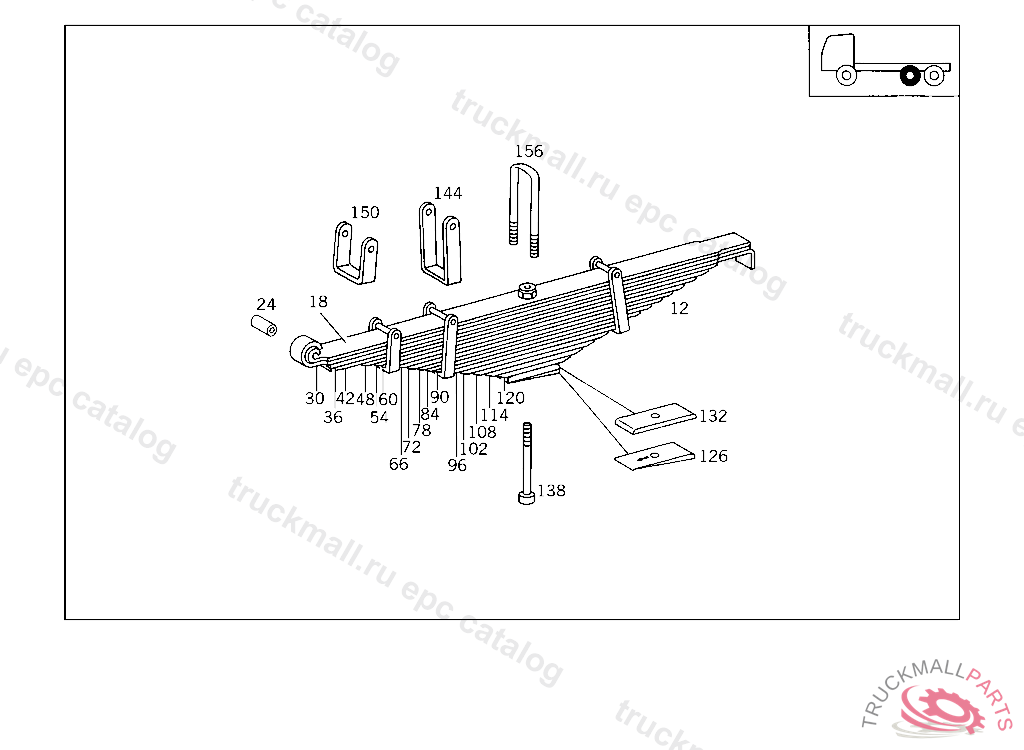

12
REAR SPRING 17-LEAF, REAR AXLE I
12
REAR SPRING 17-LEAF, REAR AXLE I
18
SPRING LEAF 17-LEAF, REAR AXLE I NO.01
24
BUSHING
24
BUSHING
30
SPRING LEAFNO.02
36
SPRING LEAFNO.03
42
SPRING LEAFNO.04
48
SPRING LEAFNO.05
54
SPRING LEAFNO.06
60
SPRING LEAFNO.07
66
SPRING LEAFNO.08
72
SPRING LEAFNO.09
78
SPRING LEAFNO.10
84
SPRING LEAFNO.11
90
SPRING LEAFNO.12
96
SPRING LEAFNO.13
102
SPRING LEAFNO.14
108
SPRING LEAFNO.15
114
SPRING LEAFNO.16
120
SPRING LEAFNO.17
126
PAD
132
PAD
138
SCREW , Replaced By: A3713217671
138
SCREW
144
SPRING CLAMP , Replaced By: A3713248933
144
SPRING CLAMP
150
SPRING CLAMP , Replaced By: A3713248833
150
SPRING CLAMP
156
U-BOLT
156
U-BOLT REAR SPRING TO REAR AXLE
999
U-BOLT REAR SPRING TO REAR AXLE
999
SCREWTO 371 320 71 02
999
SCREW
999
LEVER ,002917KAN 35/95
999
REAR SPRING 12-LEAF, REAR SPRING II
