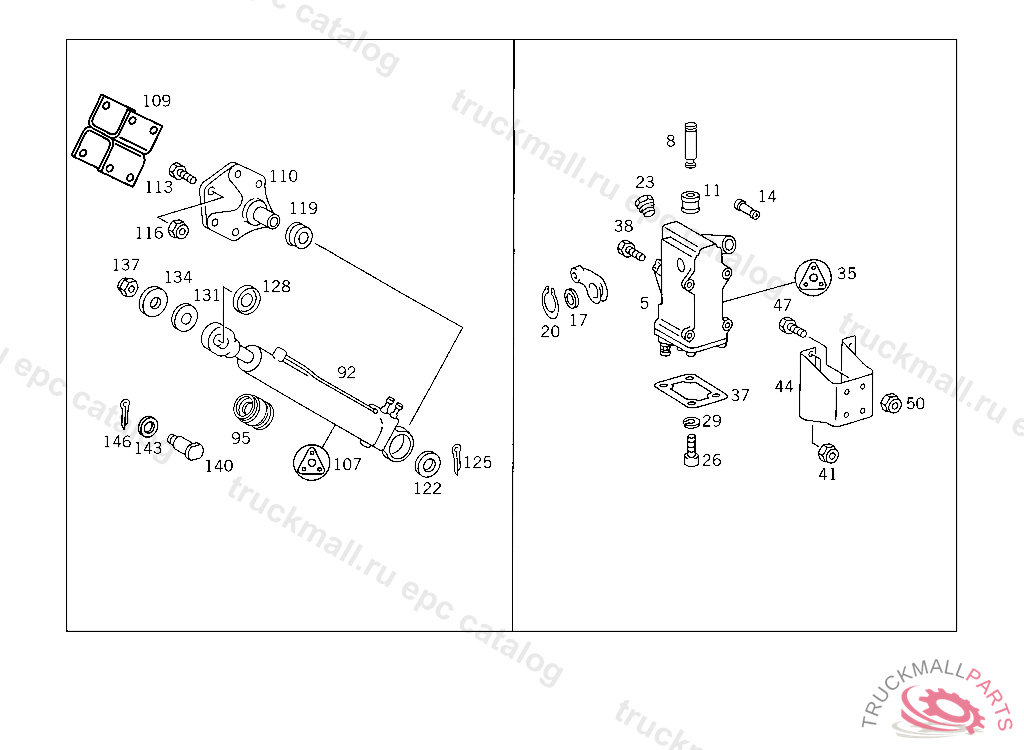

Поз.
Артикул
Описание
5
PUMP (HAND PUMP) WEBER
5
PUMP (HAND PUMP) POWER PACKER
5
PUMP (HAND PUMP) ERGUN
5
PUMP , Replaced By: A0005537901, +001A0015534205
8
PISTONTO 000 553 79 01,WEBER
11
VALVETO 000 553 39 01,WEBER
14
FILTER
17
FITTED WASHER
20
LOCK RING
23
SCREW
23
SCREW OIL FILLING HUNGER
23
SCREWTO 000 553 65 01,000 553 69 01,
26
SCREW
26
SCREW , Replaced By: N000000000190
26
SCREW , Replaced By: N000912008201
26
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
29
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
GASKET KIT HAND PUMP TO 000 553 68 01
35
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
35
GASKET KIT HAND PUMP
37
GASKETHUNGER
38
SCREW BRACKET TO SIDE MEMBER
38
SCREW , Replaced By: N910105010011
38
SCREW EXHAUST PIPE TO SIDE MEMBER
38
SCREW , Replaced By: N304017010002
41
NUT EXHAUST PIPE TO SIDE MEMBER
44
BRACKET HAND PUMP
47
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
50
NUT , Replaced By: N910113014001
92
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING ERGUN
92
CYLINDER , Replaced By: A0015539505
92
CYLINDER , Replaced By: A0015533505
95
GUIDEWEBER
95
GUIDETO 001 553 49 05
107
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
107
GASKET KIT HYDRAULIC CYLINDER WEBER
109
BRACKET HYDRAULIC CYLINDER
110
BEARING BRACKET HYDRAULIC CYLINDER
110
BEARING BRACKET HYDRAULIC CYLINDER
113
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET
113
SCREW , Replaced By: N308676016006
113
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
113
SCREW
116
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
119
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
122
WASHER HYDRAULIC CYLINDER TO CAB
125
COTTER PIN6,3X36 MM
128
WASHER HYDRAULIC CYLINDER TO CAB
131
WASHER HYDRAULIC CYLINDER TO CAB
134
WASHER HYDRAULIC CYLINDER TO CAB
137
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
