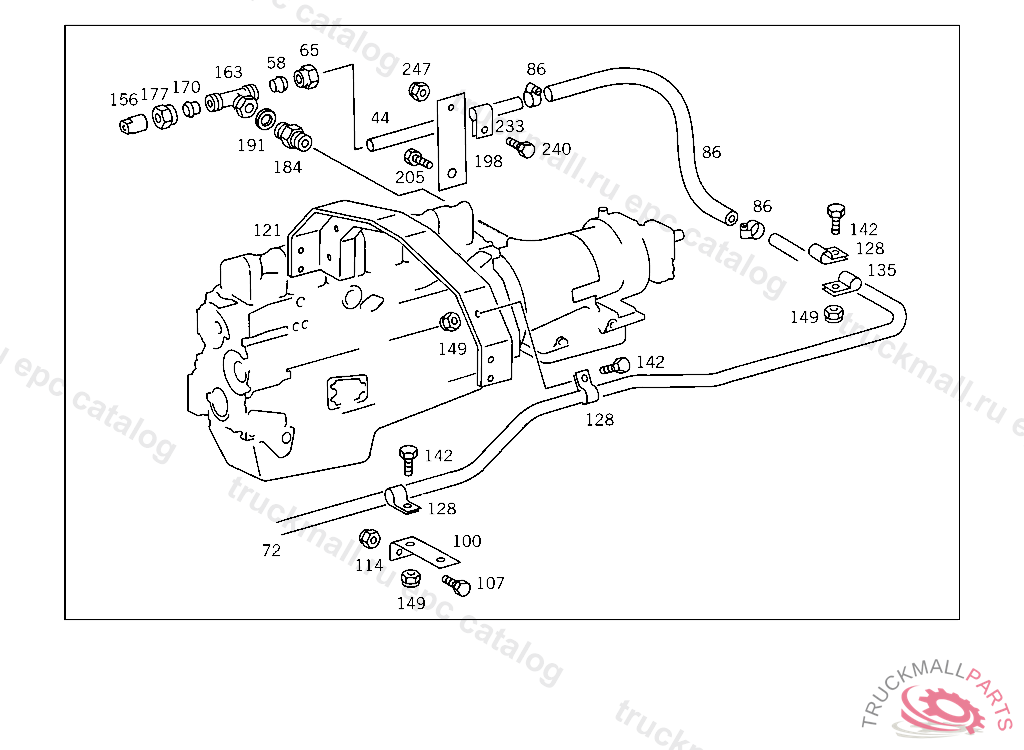

Поз.
Артикул
Описание
44
PIPE STEEL, LENGTH AVAILABLE:1660 MM
44
PIPE STEEL, LENGTH AVAILABLE:1660 MM
44
PIPE STEEL, LENGTH AVAILABLE:1660 MM
44
PIPE STEEL, LENGTH AVAILABLE:1660 MM
44
PIPE STEEL, LENGTH AVAILABLE:1660 MM
58
GLAND , Replaced By: A0019901267
65
UNION NUT LINE CONNECTION, Replaced By: N000000006243
72
PIPE FROM HOSE TO HOSE AT OIL COOLER
86
CLAMP25-40X13 MM
86
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
100
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
100
BRACKET , Replaced By: A3604292940
107
SCREW , Replaced By: A0099900101
107
SCREW , Replaced By: N000933008337
114
NUT , Replaced By: N913004008001
121
CROSS MEMBER ENGINE REAR MOUNTING
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP , Replaced By: N916016018202
135
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
142
SCREW , Replaced By: N304017006020
149
NUT PUMP TO BRACKET
149
NUT , Replaced By: N913004006001
156
FITTING OIL LINES TO TRANSMISSION
163
FITTING OIL TEMPERATURE REGULATOR
170
GLAND , Replaced By: A0019901267
177
UNION NUT LINE CONNECTION, Replaced By: N000000006243
184
FITTING OIL LINES TO TRANSMISSION
191
SEAL RING OIL LINES TO TRANSMISSION
198
BRACKET OIL LINE TO TRANSMISSION
205
SCREW BRACKET TO TRANSMISSION,5 360279
233
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
233
CLAMP , Replaced By: N916016018202
240
SCREW , Replaced By: N304017006020
247
NUT PUMP TO BRACKET
247
NUT , Replaced By: N913004006001
999
FILTER OIL FILTER
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3975000231
