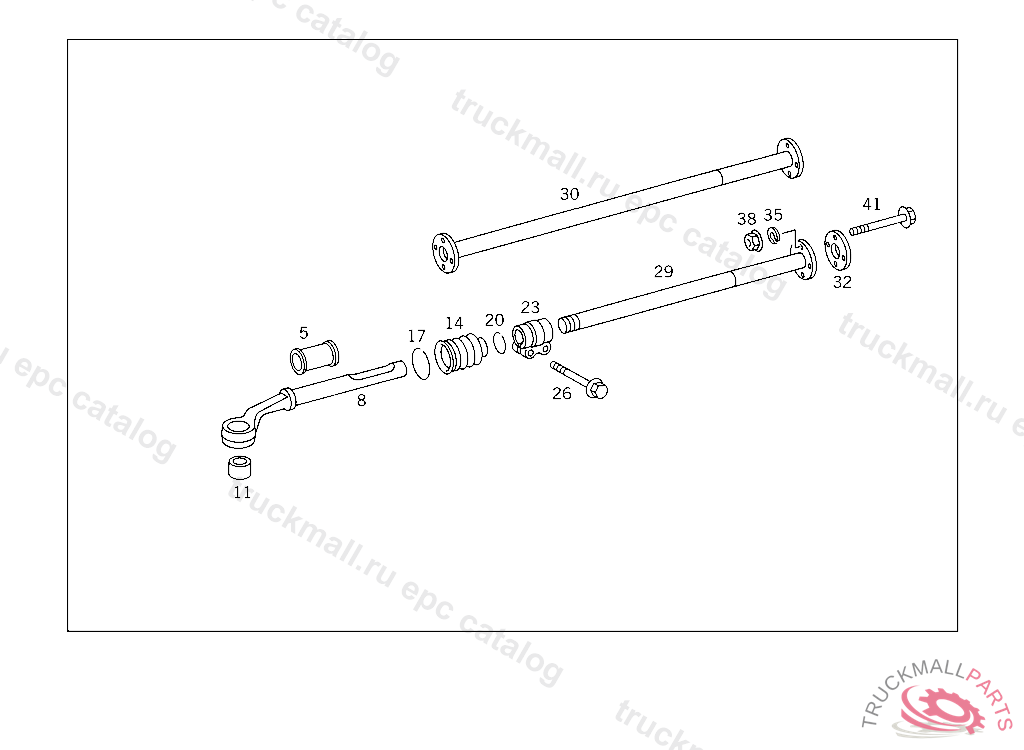

OF 1619 MBSA-RSA - 397.045 - 26 TRANSMISSION
Поз.
Артикул
Описание
5
BUSHING SHIFTING ROD
8
SHIFTING ROD , Replaced By: A3452600533
11
BUSHING SHIFT CASE
14
BOOT SHIFT CASE
17
SNAP RING SHIFT CASE
20
SNAP RING , NOT USED
23
CLAMPING PIECE SHIFTING TUBE TO TRANSMISSION
26
SCREW , Replaced By: N910105010011
26
SCREW , Replaced By: N304017010047
29
SHIFTING ROD REAR
32
WASHER SHIFTING TUBE
35
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
38
NUT BATTERY MOUNTING
38
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
41
SCREW , Replaced By: N910142008009
