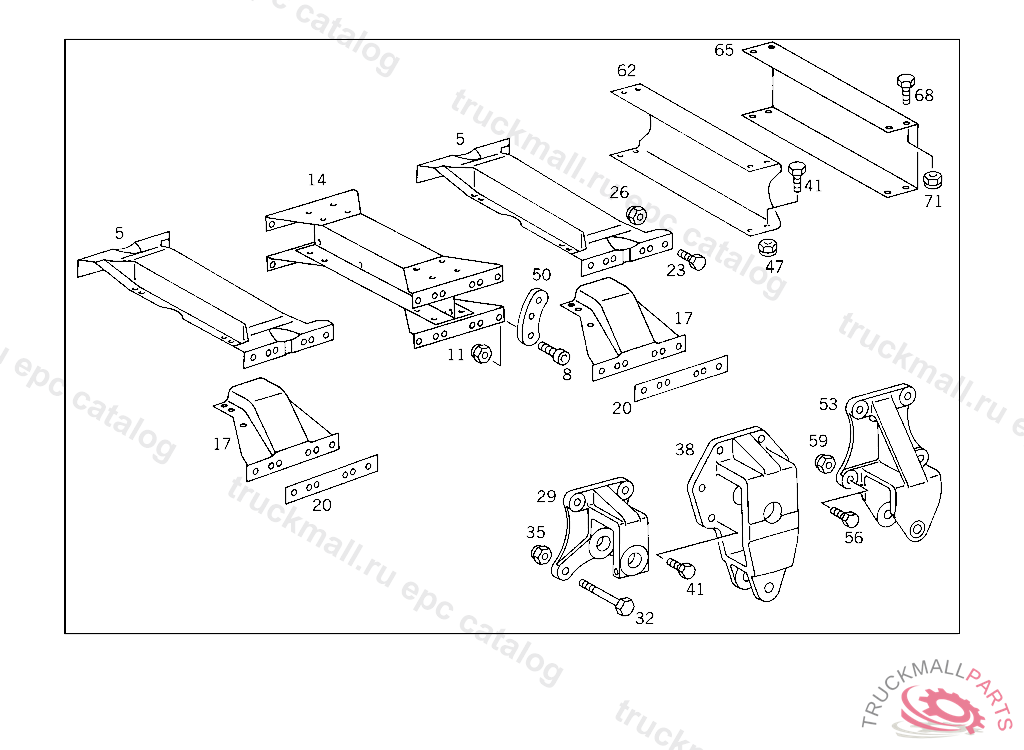

Поз.
Артикул
Описание
5
CROSS MEMBERNO.5,7
5
CROSS MEMBERNO.5,7
8
SCREW OIL COOLER TO OIL COOLER HOUSING M 8X40
11
NUT BRACKET TO BRACKET
14
CROSS MEMBERNO.6
17
STRUTNO.5
20
SHIMNO.7,KAN 49/98
20
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER NO.5,7
23
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
26
NUT PARTICLE FILTER M14
29
REAR SPRING BRACKET FRONT
32
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
32
SCREWM 16X18X38X60
32
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X65
35
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
38
BEARING BRACKET
41
SCREW , Replaced By: N308676016007
41
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X55
41
SCREW FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER
41
SCREW AUXILIARY FRAME TO FRAME
41
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
41
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X65
47
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
50
PLATE
53
REAR SPRING BRACKET REAR,002918
53
REAR SPRING BRACKET REAR,002917
56
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
56
SCREWM 16X18X38X60
56
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X65
59
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
65
CROSS MEMBER (REAR CROSS MEMBER) NO.8
68
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
71
NUT PARTICLE FILTER M14
