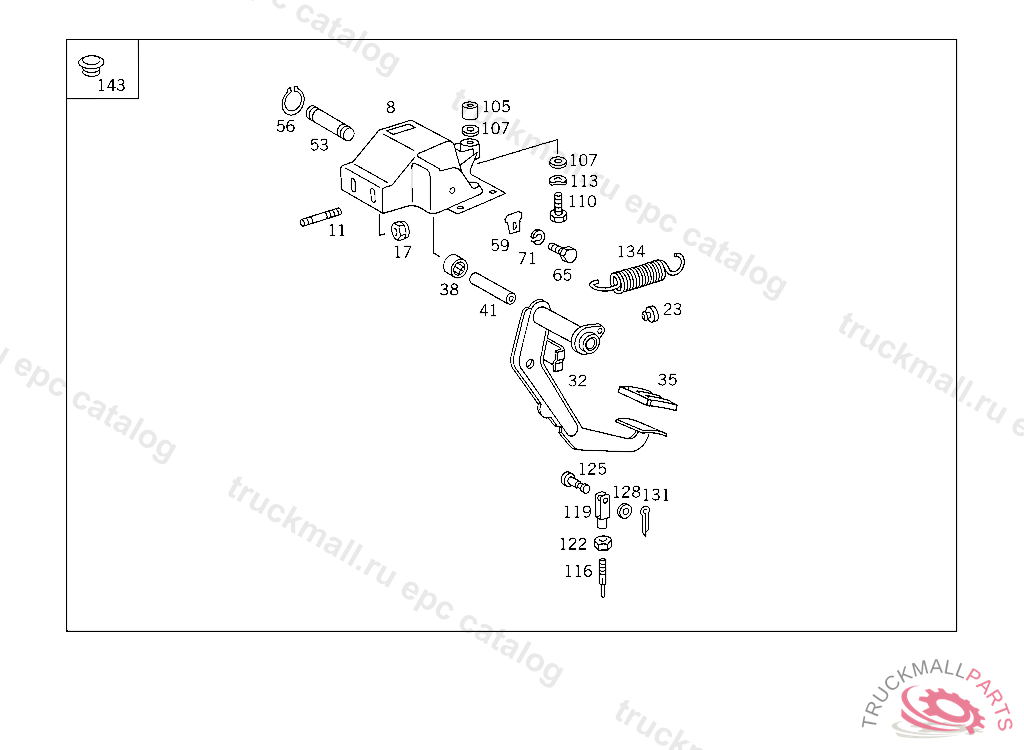

Поз.
Артикул
Описание
8
BEARING BRACKET BRAKE
11
STUD BOLT BRACKET TO CROSS MEMBER
17
NUT BRACKET TO BRACKET
23
STOP
32
PEDAL BRAKE
35
PAD BRAKE
38
NEEDLE BEARING
41
SPACER TUBE
53
PIVOT PIN PEDAL TO BEARING BRACKET
56
LOCK RING
59
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
59
LOCK , Replaced By: A6732920073
65
SCREW , Replaced By: N304017006018
71
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
105
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
107
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
110
SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL
113
SPRING WASHER STEERING COLUMN BRACKET TO CAB
116
ROD PISTON ROD AND PUSH ROD
116
ROD , Replaced By: A9702900039
119
YOKE OPERATING ROD,K 202311
122
NUT OPERATING ROD
125
PIN ROD TO BRAKE PEDAL
128
WASHER BRACKET TO CROSS MEMBER
131
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
134
SPRING BRAKE PEDAL RELEASE SPRING
143
EXPANSION PLUG , Replaced By: A0009973220
143
PLUG , Replaced By: A0009972020
143
PLUG CAB FLOOR SEALING
143
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000125008443
