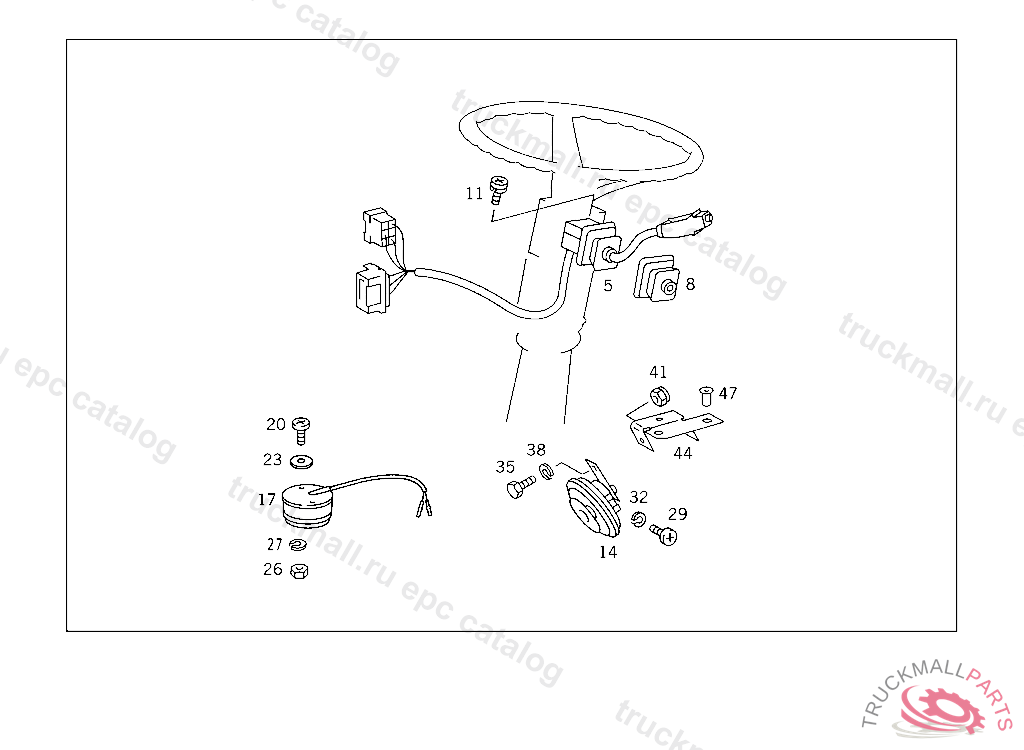

1935 S/35,LS/35 OTOMARSAN/TUERKEI - 371.325 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
Поз.
Артикул
Описание
5
STEERG.COLUMN MTD. SWITCH ,5 220081
8
BOOT ,5 220081
11
COMBINATION BOLT STEERING COLUMN MOUNTED SWITCH
14
HORN
14
HORN
14
HORN
29
SCREW ELECTRIC CABLE TO HORN
32
LOCK WASHER T-FITTING TO BRACKET
35
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
41
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
44
BRACKET HORN
47
RIVET14X70 MM, TO BE ADAPTED DURING ASSEMBLY
47
RIVET BRACKET TO FRAME
