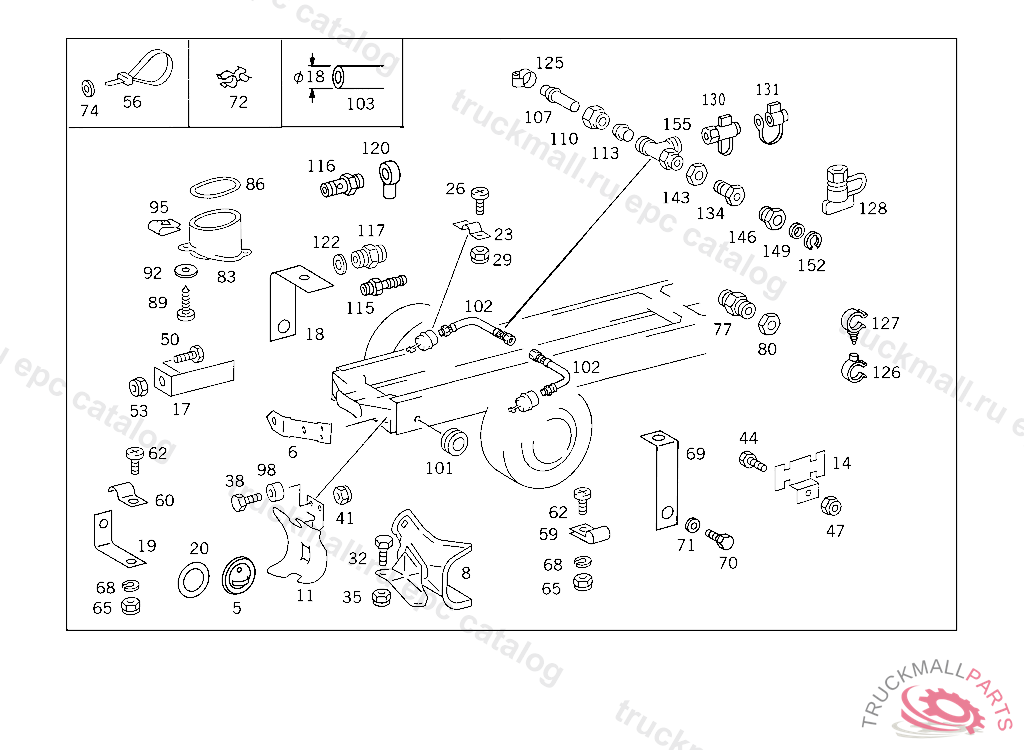

Поз.
Артикул
Описание
5
BRACKET LINE MOUNTING
8
BRACKET COMPRESSED AIR LINE MOUNTING,008097
8
BRACKET COMPRESSED AIR LINE TO BUMPER STRUT
11
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
14
BRACKET BREATHER LINE TO SIDE MEMBER
32
SCREW BRACKET TO CROSS CONNECTION STRUT
32
SCREW , Replaced By: N304017008034
32
SCREW PIPE CLAMP
32
SCREW , Replaced By: N304017008021
35
NUT BRACKET TO BRACKET
38
SCREW , Replaced By: N910142008009
38
SCREW , Replaced By: N910143008002
38
SCREW , Replaced By: N910142008001
41
NUT BRACKET TO BRACKET
44
SCREW BRACKET TO FRAME M 8X35
47
NUT BRACKET TO BRACKET
50
SCREW BRACKET TO FRAME M 8X35
53
NUT BRACKET TO BRACKET
56
LOOM TIE365 MM
59
CLAMP DELIVERY AND SUCTION LINES TO STEERING
59
CLAMP , Replaced By: A6739950001
62
SCREW , Replaced By: N000000001146
65
NUT AT FILTER BRACKET
68
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
69
BRACKET AIR COMPRESSOR LINE
70
SCREW LINE MOUNTING M 10X20
71
WASHER25MM
72
LOOM TIE BRAKE LINE MOUNTING
74
WASHER BRACKET TO LEFT SIDE MEMBER
77
SCREW-IN FITTING RETURN LINE TO STEERING
80
NUT CHECK VALVE TO AIR RESERVOIR
83
BRACKET FOR PASSAGE OF LINE
86
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
89
SHEET METAL SCREW BRACKET TO CAB FLOOR
92
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
92
WASHER , Replaced By: N009021005205
95
LOCK ELECTRIC CABLE THRU CAB FLOOR
98
WASHER BRACKET TO LEFT SIDE MEMBER
101
GROMMET LINE THRU FRAME
101
GROMMET FOR PASSAGE OF LINE
101
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
102
BRAKE HOSE FROM RELAY VALVE TO CYLINDER
103
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
107
FITTING DIAPHRAGM CYLINDER,CONNECTION:
107
FITTING DIAPHRAGM CYLINDER,CONNECTION:
107
FITTING DIAPHRAGM CYLINDER,CONNECTION:
110
UNION NUT LINE CONNECTION, Replaced By: N000000006239
113
GLAND , Replaced By: A0019901967
113
SEAL CONE LINE CONNECTION
115
FITTING DIAPHRAGM CYLINDER,CONNECTION:
115
FITTING DIAPHRAGM CYLINDER,CONNECTION:
116
HOLLOW SCREW FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "1"
120
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
125
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
125
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
125
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
125
CLAMP HOSE TO FITTING AND TO OIL TANK
126
CLAMP BRAKE HOSE
127
CLAMP BRAKE HOSE
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION
128
TEST CONNECTION
128
TEST CONNECTION
128
TEST CONNECTION
128
TEST CONNECTION
128
TEST CONNECTION
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
128
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
131
PLUG
134
ADAPTER FITTING LINE CONNECTION TO ENGINE
143
NUT LEFT AND RIGHT BRAKE HOSES
146
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
146
SCREW. UNION SCREW LINE CONNECTION
149
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
152
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
155
T-FITTING LEFT AND RIGHT BRAKE HOSES
