Поз.
Артикул
Описание

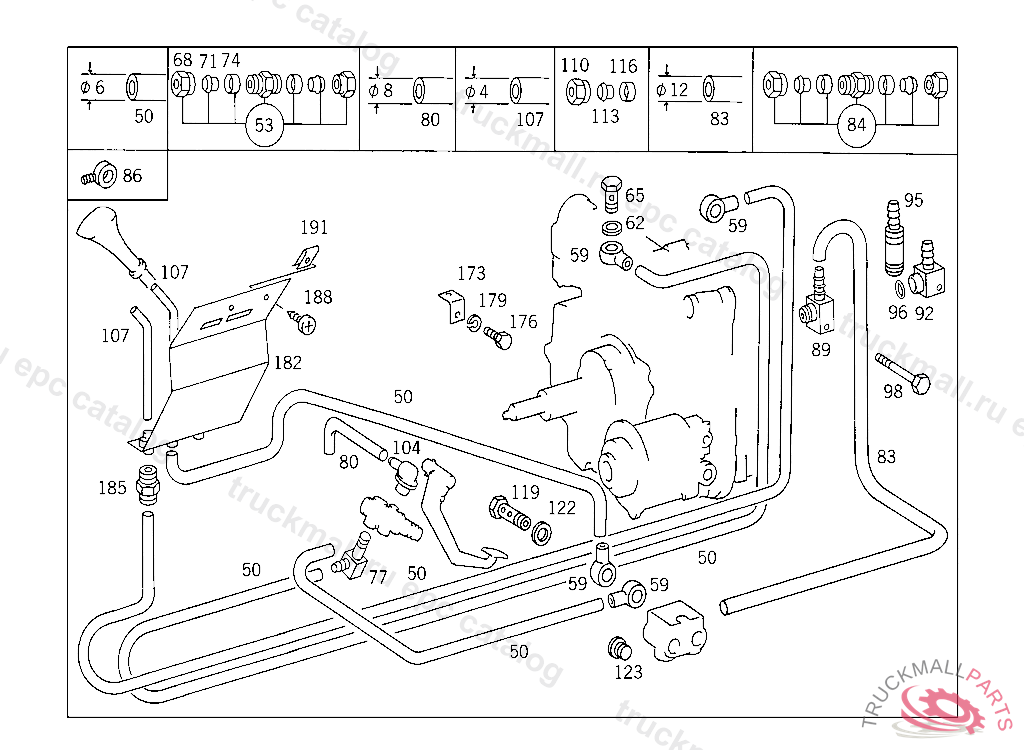

50
PLASTIC PIPE RISING PIPE 4X6 MM
50
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
53
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
59
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
62
SEAL RING LINE CONNECTION
62
SEAL RING LINE CONNECTION
65
HOLLOW SCREW HEATING CONNECTION
65
HOLLOW SCREW HEATING CONNECTION
68
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
71
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
74
SLEEVE LEAK LINE
77
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
77
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
77
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
104
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
104
BREATHER , Replaced By: A3933280065
