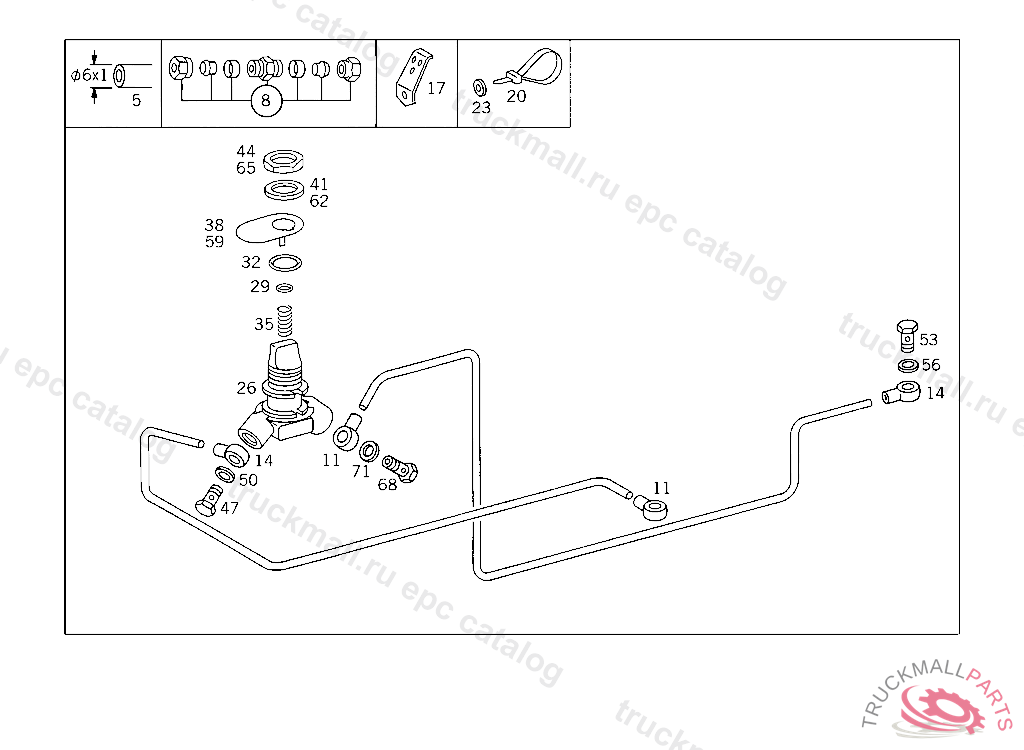

Поз.
Артикул
Описание
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
PLASTIC PIPE RISING PIPE 4X6 MM
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
14
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
17
BRACKET LINE MOUNTING
20
LOOM TIE365 MM
20
LOOM TIE LINE MOUNTING 280 MM
20
LOOM TIE LINE MOUNTING
20
LOOM TIE , Replaced By: A0019978490
20
LOOM TIE , Replaced By: A3719977090
23
WASHER BRACKET TO LEFT SIDE MEMBER
26
VALVE 3/2-WAY BOSCH
26
VALVE 3/2-WAY KNORR
26
VALVE 3/2-WAY WABCO
26
VALVE 3/2-WAY VOSS
29
SEAL RING TOP WABCO
32
SEAL RING INSIDE WABCO
35
SPRING INSIDE WABCO
38
UNIT IDENTIFICATION PLATE SYMBOL: LONGITUDINAL DIFFERENTIAL LOCK
41
WASHER AT TWO-WAY VALVE
44
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
47
HOLLOW SCREW LINE CONNECTION
50
SEAL RING LINE CONNECTION
53
HOLLOW SCREW HEATING CONNECTION
56
SEAL RING LINE CONNECTION
