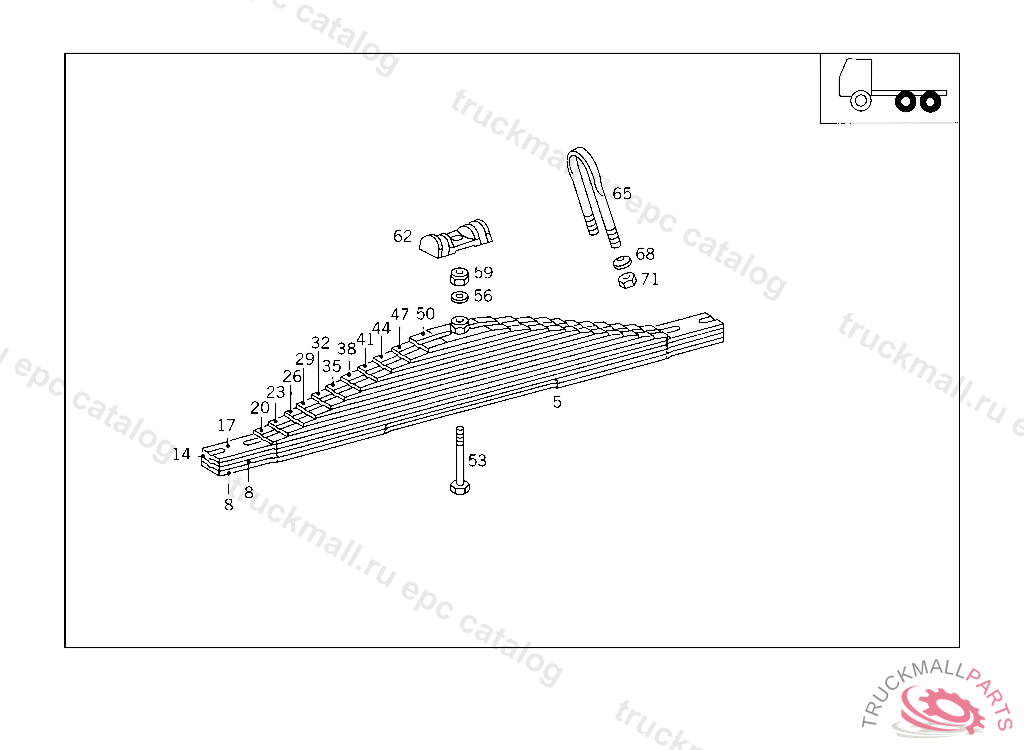

2628 K OTOMARSAN/TUERKEI - 371.359 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
5
REAR SPRING 15-LEAF
8
SPRING LEAFNO.1,2
14
SPRING LEAFNO.3
17
SPRING LEAFNO.4
20
SPRING LEAFNO.5
23
SPRING LEAFNO.6
26
SPRING LEAFNO.7
29
SPRING LEAFNO.8
32
SPRING LEAFNO.9
35
SPRING LEAFNO.10
38
SPRING LEAFNO.11
41
SPRING LEAFNO.12
44
SPRING LEAFNO.13
47
SPRING LEAFNO.14
50
SPRING LEAFNO.15
53
SPRING BOLT ,4 338077
53
SPRING BOLT (SPRING BOLT)
56
WASHER BRACKET TO SPARE WHEEL CARRIER
59
NUT TORSION BAR TO BEARING BRACKET,5 904661
62
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE TO 624 320 00 06
65
U-BOLT REAR SPRING TO SPRING SADDLE 440 MM
68
SPHERICAL WASHER REAR SPRING TO SPRING SADDLE
71
NUT REAR SPRING TO SPRING SADDLE
