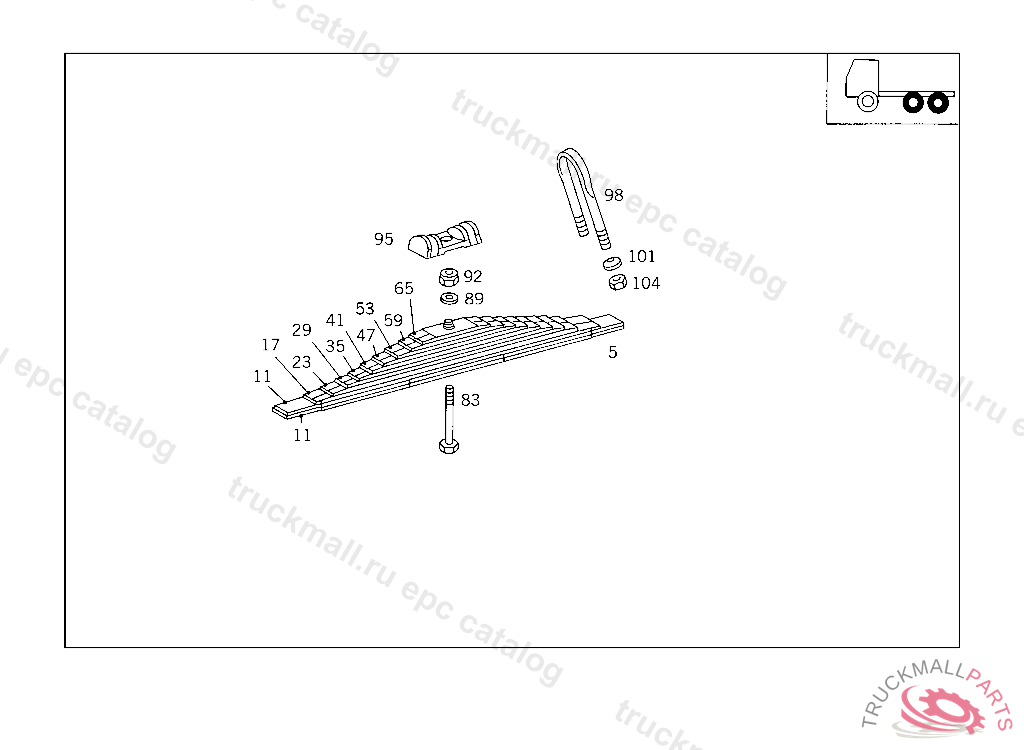

2635 S/6X4/32 OTOMARSAN/TUERKEI - 371.376 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
5
REAR SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "11"
11
SPRING LEAFNO.1,NO.2
17
SPRING LEAFNO.3
23
SPRING LEAFNO.4
29
SPRING LEAFNO.5
35
SPRING LEAFNO.6
41
SPRING LEAFNO.7
47
SPRING LEAFNO.8
53
SPRING LEAFNO.9
59
SPRING LEAFNO.10
65
SPRING LEAFNO.11
83
SPRING BOLT ,4 338077
89
WASHER BRACKET TO SPARE WHEEL CARRIER
92
NUT TORSION BAR TO BEARING BRACKET,5 904661
95
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
95
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
98
U-BOLT REAR SPRING TO SPRING SADDLE
101
SPHERICAL WASHER REAR SPRING TO SPRING SADDLE
104
NUT REAR SPRING TO SPRING SADDLE
