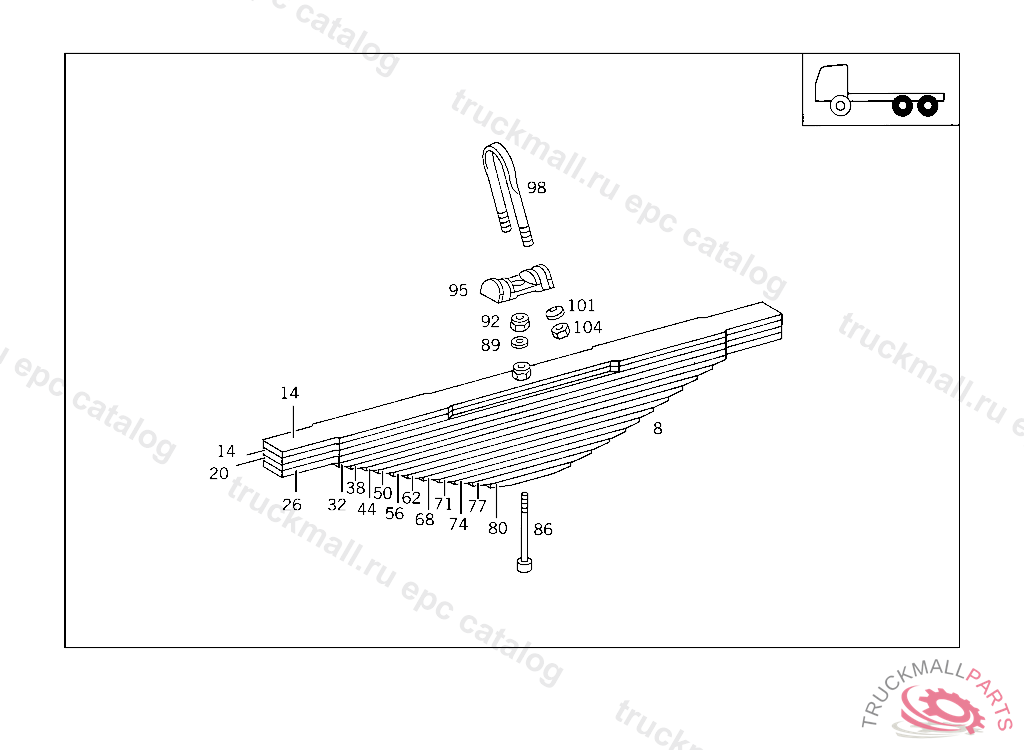

2637 K/6X4/38,5 OTOMARSAN/TUERKEI - 371.379 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
8
REAR SPRING 15-LEAF
14
SPRING LEAFNO.1,2
20
SPRING LEAFNO.3
26
SPRING LEAFNO.4
32
SPRING LEAFNO.5
38
SPRING LEAFNO.6
44
SPRING LEAFNO.7
50
SPRING LEAFNO.8
56
SPRING LEAFNO.9
62
SPRING LEAFNO.10
68
SPRING LEAFNO.11
71
SPRING LEAFNO.12
74
SPRING LEAFNO.13
77
SPRING LEAFNO.14
80
SPRING LEAFNO.15
86
SPRING BOLT (SPRING BOLT)
89
WASHER BRACKET TO SPARE WHEEL CARRIER
92
NUT TORSION BAR TO BEARING BRACKET,5 904661
95
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE TO 624 320 00 06
98
U-BOLT REAR SPRING TO SPRING SADDLE
98
SPRING LEAF REAR SPRING TO REAR AXLE 425 MM
98
U-BOLT REAR SPRING TO SPRING SADDLE 440 MM
101
SPHERICAL WASHER REAR SPRING TO SPRING SADDLE
104
NUT REAR SPRING TO SPRING SADDLE
