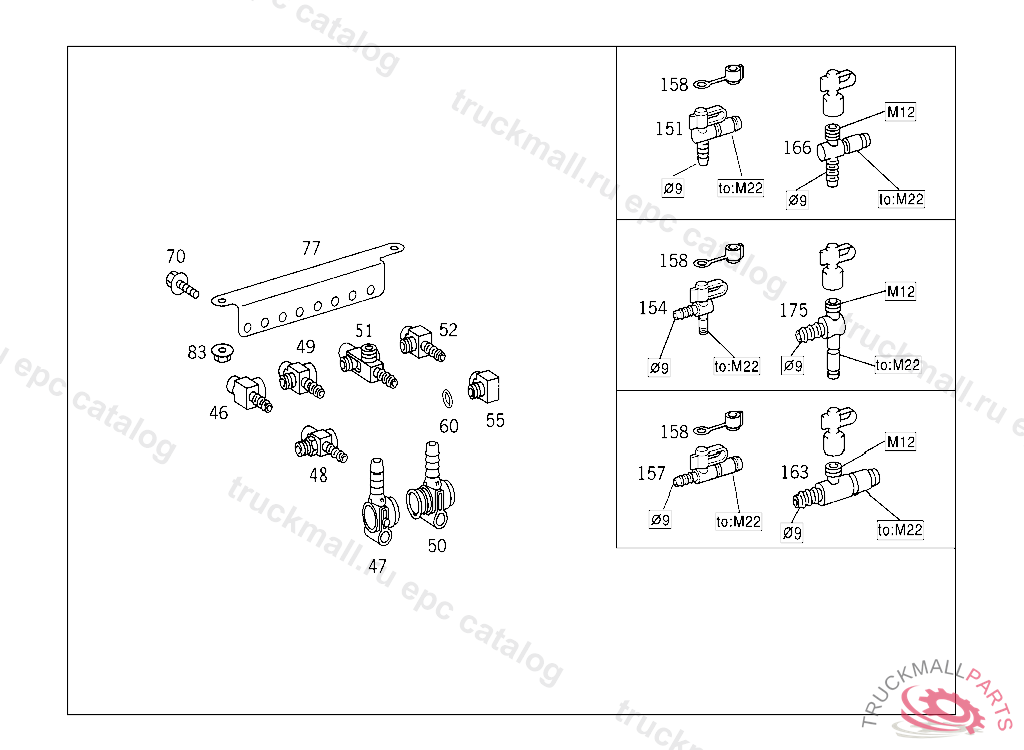

Поз.
Артикул
Описание
46
CONNECTOR DISTRIBUTOR TO CAB
47
CONNECTOR DISTRIBUTOR TO FRAME
48
CONNECTOR HOSE WIDTH, 6 MM
49
CONNECTOR DISTRIBUTOR TO CAB
49
CONNECTOR DISTRIBUTOR TO CAB
50
CONNECTOR RELEASE BEARING LUBRICATION
51
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
52
CONNECTOR DISTRIBUTOR TO CAB
52
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
55
CONNECTOR DISTRIBUTOR TO CAB
60
SEAL RING
70
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
77
BRACKET CONNECTOR, TO BE ADAPTED DURING ASSEMBLY
77
77
BRACKET , Replaced By: A9414292640
83
NUT BRACKET TO PIN
151
151
TANK RECESS COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 9 MM, VOSS 232
154
154
L TEST CONNECTION COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 9 MM, VOSS 232
157
157
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 9 MM, VOSS 232
158
PLUG
163
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 9 MM, VOSS 232
163
T-FITTING HOSE WIDTH, 9 MM,TO M 22
166
T-FITTING
166
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 9 MM, VOSS 232
175
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
175
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 9 MM, VOSS 232
