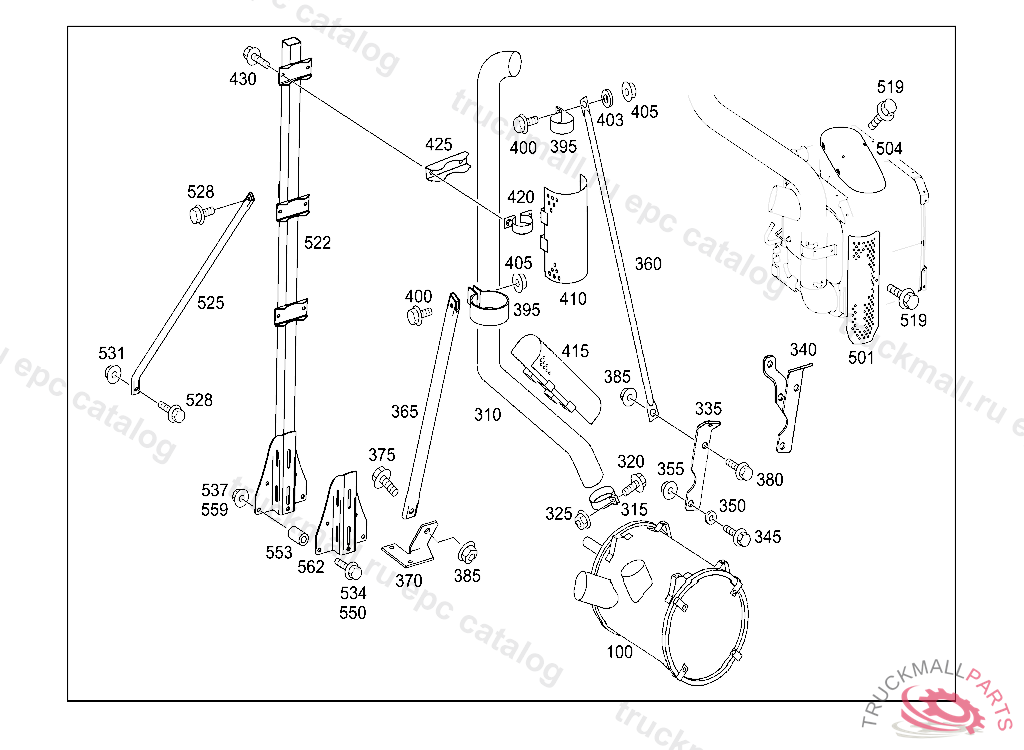

Поз.
Артикул
Описание
100
EXHAUST MUFFLER
310
REAR EXHAUST PIPE VERTICAL TAIL PIPE BEHIND CAB
310
310
310
REAR EXHAUST PIPE VERTICAL TAIL PIPE BEHIND CAB
315
CLAMP AT EXHAUST PIPE
315
CLAMP AT EXHAUST PIPE
315
CLAMP I.D., 104,5MM
320
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
320
SCREW BRACKET TO SIDE MEMBER M10X35
325
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
335
BRACKET EXHAUST MUFFLER BRACING
335
340
BRACKET EXHAUST MUFFLER BRACING
340
345
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
345
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X65
345
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
345
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
345
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
345
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
345
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
350
WASHER BRACKET TO SIDE MEMBER,5 703114
355
NUT SUPPORT TO FRAME
355
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
360
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,FRONT
360
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
360
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
360
REINFORCEMENT EXHAUST PIPE BRACING 1395MM
360
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,FRONT
365
REINFORCEMENT EXHAUST PIPE BRACING 647MM
370
BRACKET BRACKET MOUNTING
375
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
380
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
380
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
385
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
385
NUT SUPPORT TO FRAME
395
CLAMP EXHAUST PIPE TO BRACKET
400
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
400
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
400
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
403
SPACER TUBE BRACKET TO BELL HOUSING
405
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
410
PROTECTIVE PLATE (HEAT SHIELD)
415
415
PROTECTIVE PLATE LOWER EXHAUST PIPE
415
PROTECTIVE PLATE UPPER EXHAUST PIPE
415
PROTECTIVE PLATE EXHAUST PIPE
415
420
CLAMP , Replaced By: A3464920040
420
CLAMP EXHAUST PIPE TO BRACKET
425
BASE PLATE HEAT SHIELD TO TAILPIPE
425
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE
425
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE
430
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
430
HEXAGON HEAD BOLT PROTECTIVE PLATE TO EXHAUST MUFFLER M8X12
430
SCREW , Replaced By: N910143008002
501
PROTECTIVE PLATE AT EXHAUST PIPE
504
PROTECTIVE PLATE AT MUFFLER
519
BOLT TO THREE-WAY CATALYTIC CONVERTER M8X16
519
HEXAGON HEAD BOLT PROTECTIVE PLATE TO EXHAUST MUFFLER M8X12
519
522
BRACKET REAR EXHAUST PIPE
525
REINFORCEMENT EXHAUST PIPE TO FRAME
525
REINFORCEMENT SUPPORT TO BRACKET
525
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
528
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
528
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
528
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
528
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
531
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
531
NUT REINFORCEMENT ANGLE AND GUSSET PLATE TO FRAME
531
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
534
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
537
NUT BRACKET TO SIDE MEMBER M12X1.5
550
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
550
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
550
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M14X1.5X90
550
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
553
BUSHING BRACKET TO FRAME
559
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
562
ANGLE BRACKET TO FRAME
