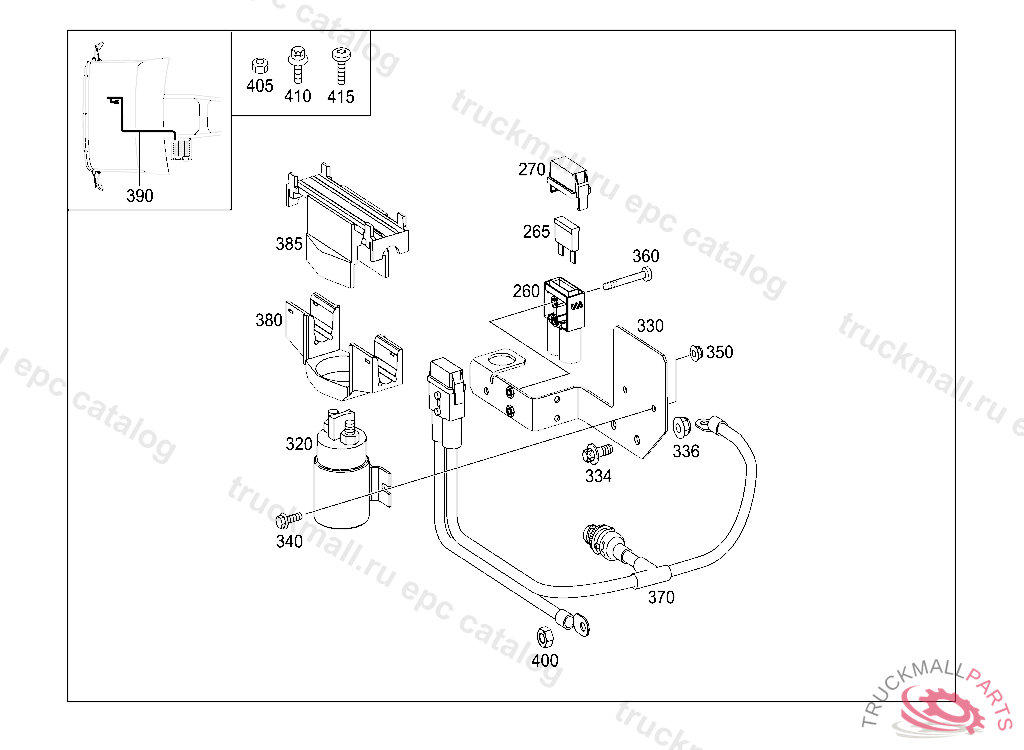

Поз.
Артикул
Описание
260
FUSE BOXGRIDHEATER
265
FUSE LINK80A
270
CAP ADDITIONAL FUSE BOX
320
RELAY12A 24V,GRIDHEATER
330
BRACKET RELAY GRIDHEATER
334
SCREW BRACKET TO SIDE MEMBER M8X20
336
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
340
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
350
NUT RELAY TO BRACKET M5
360
SCREW FUSE BOX TO BRACKET M4X35
370
370
ELECTRICAL WIRING HARNESSGRIDHEATER
380
CAP FOR COVER OF CONTACTS ON BATTERY CARRIER
385
CAP FOR COVER OF CONTACTS ON BATTERY CARRIER
390
ELECTRICAL WIRING HARNESS FROM RELAY TO POSITIVE HOUSING GRIDHEATER
390
ELECTRICAL WIRING HARNESS FROM RELAY, TERMINAL 88 TO HEATER FLANGE GRIDHEATER
390
ELECTRICAL WIRING HARNESS FROM RELAY TO POSITIVE HOUSING GRIDHEATER
400
HEXAGON NUT ELECTRIC CABLE TO BATTERY TERMINAL M6, GRIDHEATER
405
HEXAGON NUT POSITIVE LINE TO HEATER FLANGE M8
410
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
415
HEXALOBULAR BOLT GROUND LINE TO GRID HEATER M6X25
