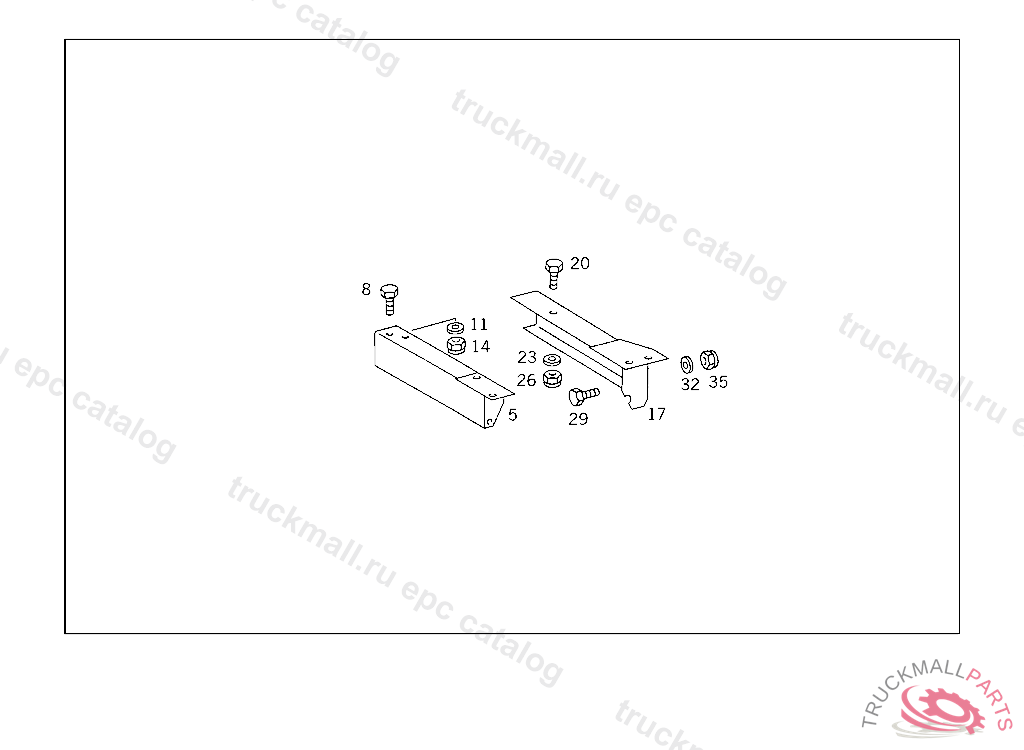

Поз.
Артикул
Описание
5
BODY SUPPORT FRONT LEFT
8
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
8
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
11
WASHER GROUND CABLE
14
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
17
BODY SUPPORT REAR LEFT
20
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
20
SCREW BEARING BRACKET TO SIDE MEMBER
20
SCREW BRACKET TO SIDE MEMBER
23
WASHER SUPPORT TO FRAME,D 127794
26
NUT BRACKET TO LEFT SIDE MEMBER
26
NUT BRACKET TO SIDE MEMBER M12X1.5
29
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
32
WASHER GROUND CABLE
35
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
