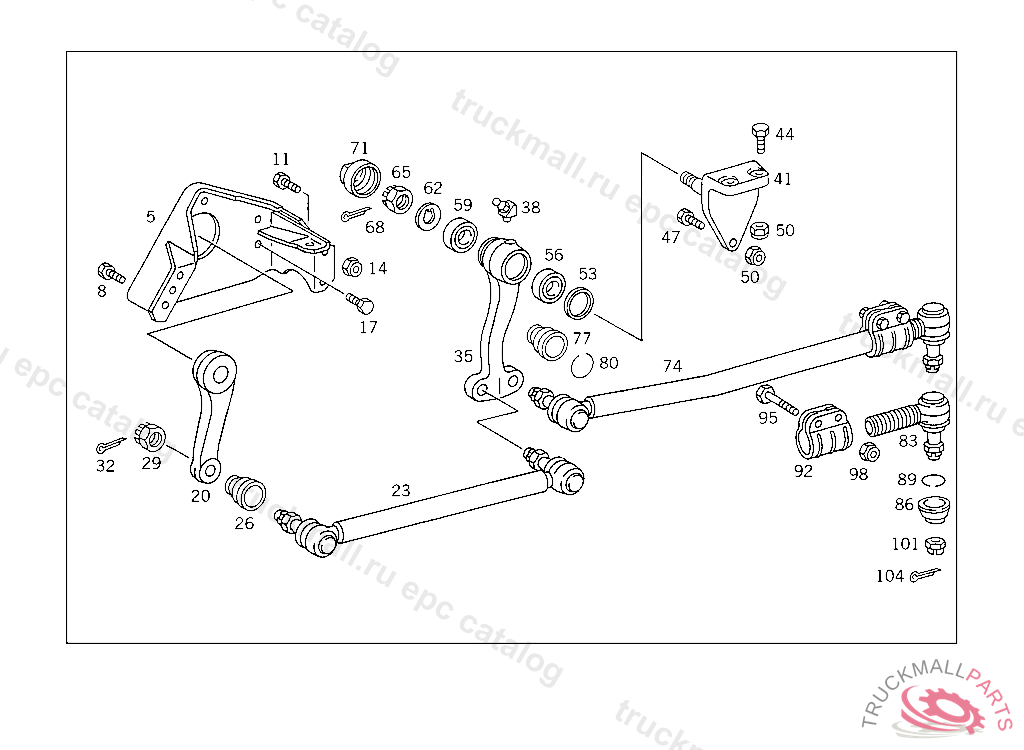

Поз.
Артикул
Описание
5
STEERING BRACKET ,PB988879
8
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
11
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
14
NUT ALTERNATOR TO SUPPORT
17
SCREW STEERING TO STEERING BRACKET
20
PITMAN ARM BALL-NUT-TYPE HYDRAULIC POWER STEERING, 345.200 FROM IDENT NO. 488616
23
DRAG LINKGEMMER THOMPSON
23
DRAG LINK
23
DRAG LINKLEMFOERDER
26
BOOT FIXED PART OF JOINT TO 345 460 88 05
29
NUT
32
COTTER PIN
35
STEERING INTERMEDIATE ARM , USED WITH AIR BRAKE
38
GREASE NIPPLE
41
TRUNNION BEARING STEERING INTERMEDIATE ARM
44
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
47
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
50
NUT ALTERNATOR TO SUPPORT
53
SEAL RING
56
TAPERED ROLLER BEARING
56
TAPERED ROLLER BEARING
56
TAPERED ROLLER BEARING FRONT
59
TAPERED ROLLER BEARING
59
TAPERED ROLLER BEARING
59
TAPERED ROLLER BEARING INTERMEDIATE LEVER TO BEARING BRACKET
62
THRUST WASHER STEERING INTERMEDIATE ARM BEARING
65
NUT , Replaced By: N000979020000
68
COTTER PIN
71
CAP AT STEERING INTERMEDIATE ARM
74
DRAG LINKNAKATA, USED WITH AIR BRAKE607675
77
DUST CAPTO 345 460 81 05,376 460 01 05
80
CLAMPING RING FIXED PART OF JOINT TO 345 460 86 05, USED WITH AIR BRAKE, 341.041,042,044 FROM CHASSIS A 059729 ALSO INSTALLED ON A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
83
JOINT
86
DUST CAPTO 345 460 81 05,376 460 01 05
89
CLAMPING RING FIXED PART OF JOINT TO 345 460 86 05, USED WITH AIR BRAKE, 341.041,042,044 FROM CHASSIS A 059729 ALSO INSTALLED ON A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
92
CLAMPTO 345 460 80 05, 345 460 79 05
95
SCREW , Replaced By: N308676012016
98
NUT ALTERNATOR TO SUPPORT
101
NUT
104
COTTER PIN
