Поз.
Артикул
Описание

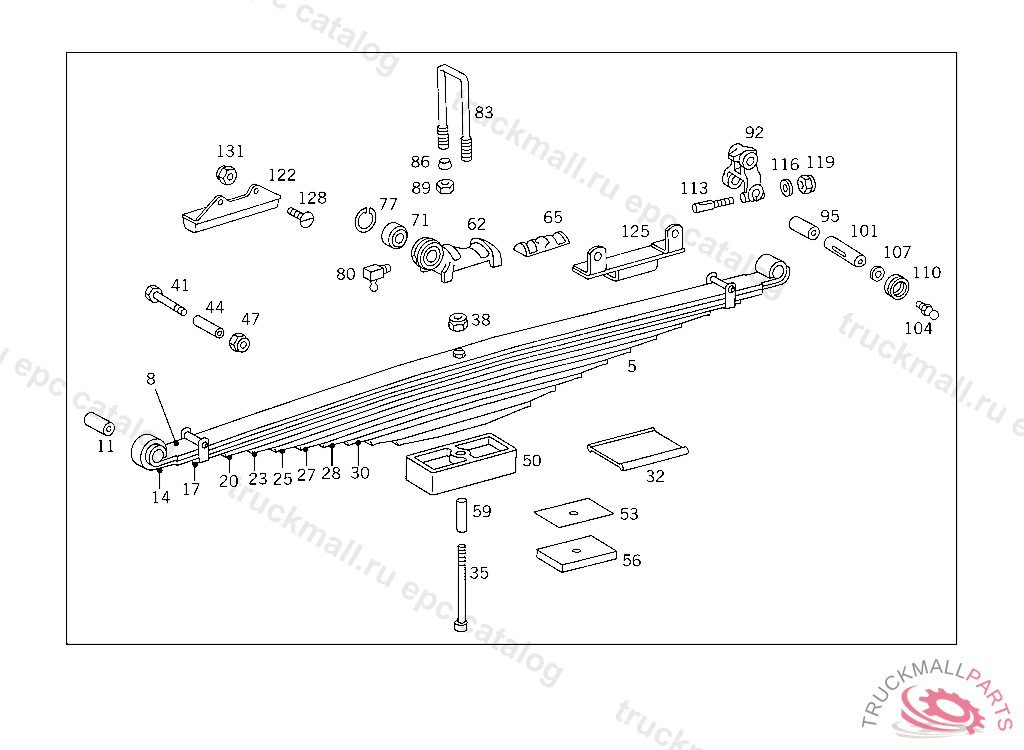

5
REAR SPRING
8
SPRING LEAF NO.1 TO 382 320 74 06
11
BUSHING
11
BUSHING
14
SPRING LEAF NO.2 TO 382 320 74 06
17
SPRING LEAFNO.3, TO 382 320 74 06
23
SPRING LEAFNO.5, TO 382 320 74 06
25
SPRING LEAFNO.6
27
SPRING LEAFNO.7
28
SPRING LEAFNO.8
30
SPRING LEAFNO.9
32
PLASTIC SECTION , ORDER BY THE METER
35
SPRING BOLT FRONT SPRINGS TO FRONT AXLE
38
NUT , Replaced By: N910113012005
53
SPACER
56
SPACER AT REAR AXLE
65
PLATE , Replaced By: A6953257031
83
U-BOLT FRONT SPRINGS TO FRONT AXLE 280 MM
86
WASHER FRONT SPRINGS TO FRONT AXLE
89
NUT STEERING SUPPORT TO FRAME
92
SHACKLE REAR SPRING SUSPENSION
95
BUSHING
95
BUSHING
101
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
104
GREASE NIPPLE PROTECTIVE TUBE
107
WASHER AS REQUIRED 4.0 MM
107
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
107
WASHER AS REQUIRED 4.2 MM
107
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
110
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
113
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
116
WASHER GROUND CABLE
119
NUT BRACKET TO SIDE MEMBER,XB209706
125
STOP ,D 134182
128
SCREW STOP BUFFER TO FRAME M 10X30
131
NUT BRACKET TO SIDE MEMBER,XB209706
