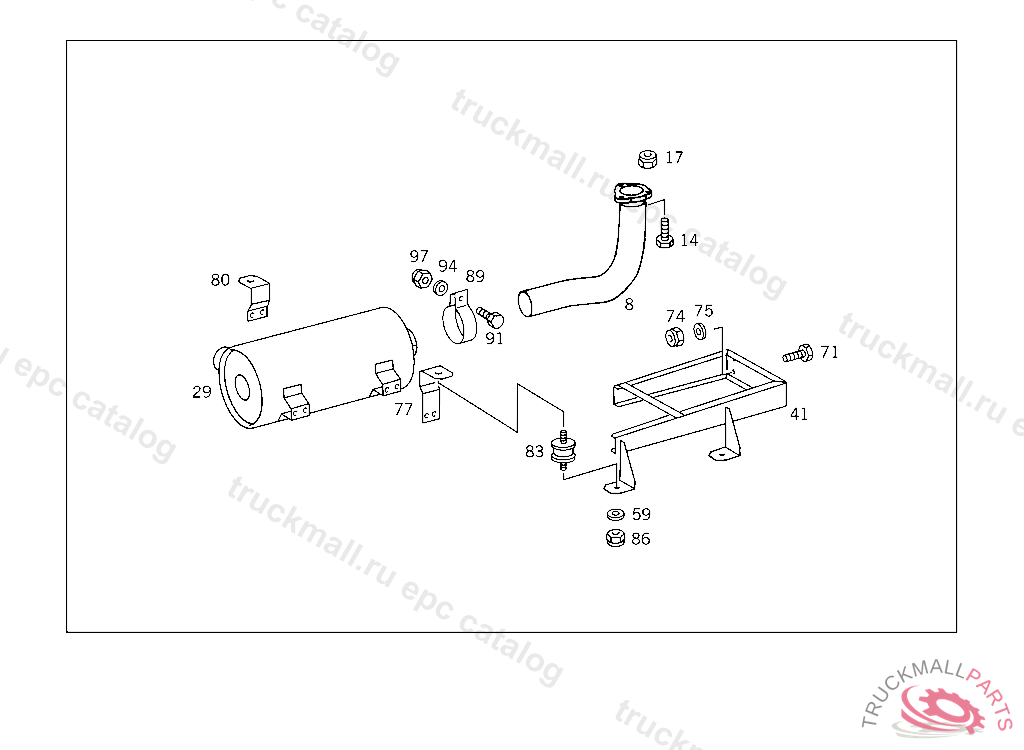

Поз.
Артикул
Описание
8
EXHAUST PIPE FRONT,FRONT PART,D 057803
14
SCREW BRACKET TO FRAME M 12X60
17
NUT CONNECTOR TO EXHAUST MANIFOLD
29
EXHAUST MUFFLER ,D 061565
29
EXHAUST MUFFLER ,D 061565
41
SUPPORT ,D 057803
59
WASHER GROUND CABLE
71
SCREW , Replaced By: N304017010040
71
SCREW ANGLE TO CROSS MEMBER M 10X30
74
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
75
WASHER GROUND CABLE
77
BRACKET BRACKET TO RUBBER MOUNTING,D 057803
80
BRACKET BRACKET TO RUBBER MOUNTING,D 057803
83
RUBBER MOUNTING
86
NUT BRACKET TO SIDE MEMBER,XB209706
89
CLAMP EXHAUST MUFFLER TO EXHAUST PIPE
91
SCREW , Replaced By: N304014010013
94
WASHER TRANSMISSION TO INTERMEDIATE RING
97
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
SCREW PLUG SOCKET TO FRAME
999
NUT BRACKET TO SIDE MEMBER
